Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-LEDIM
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Brightness: |
800-1000 Nits |
Span Life : |
≥ 100,000 Hrs |
Viewing Angle: |
H140 °/ V140° |
Refresh Rate : |
3840Hz |
Pixel Pitch: |
P1.57/P1.87/P2.5 |
Usage: |
Indoor |
Brightness: |
800-1000 Nits |
Span Life : |
≥ 100,000 Hrs |
Viewing Angle: |
H140 °/ V140° |
Refresh Rate : |
3840Hz |
Pixel Pitch: |
P1.57/P1.87/P2.5 |
Usage: |
Indoor |

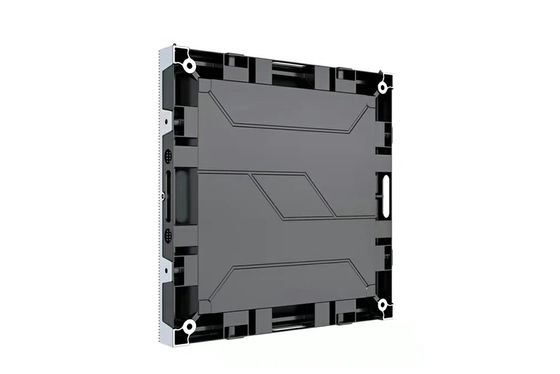

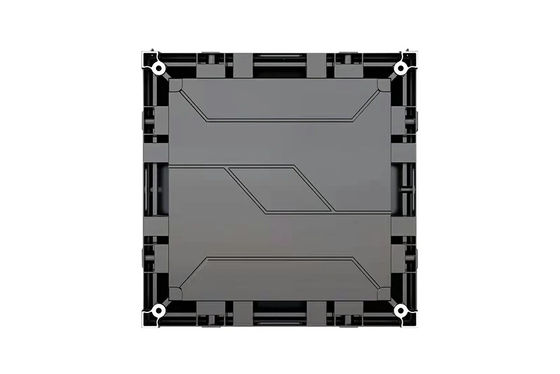

Indoor Filming wall 3D P1.57/P1.87/P2.5 Immersive Screen
– Low brightness and high gray technology, 5000:1, low power consumption
-3840Hz refresh rate, high dynamic picture display is real and natural, no smear
-Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
-Metal heat dissipation, ultra-quiet fanless design
-Optional power supply and signal dual backup function
-Full front maintenance. High precision adjustment
-Die-cast aluminum design, seamless borderless, infinite splicing
>> Specifications
| Pixel Pitch | P1.57 | P1.87 | P2.5 |
| Pixel Density | 401120 | 284444 | 160000 |
| LED Type | SMD1212 | SMD1515 | SMD2121 |
| Refresh Rate(Hz) | 3840 | ||
| Cabinet Size(mm) | 480*480 | ||
| Module Size(mm) | 240*120 | 240*240 | 240*240 |
| Module Resolution | 152*76 | 128*128 | 96*96 |
| Brightness(nits) | 800~1000 | ||
| Max Consumption(W/M) | 650 | ||
| Ave Consumption(W/M) | 195~300 | ||
| View Angle/Horizontal | 140 | ||
| View Angle/Vertical | 90 | ||
| Grey Scale(Bit) | ≥14 | ||
| Certificate | EMC,CE,ETL,FCC, CB | ||
