3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5

3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5

  • High Light

    3840hz Immersive LED Display

    ,

    ROHS Immersive LED Display

    ,

    Indoor Immersive LED Screen

  • Pixel Pitch
    2.5
  • LED Type
    SMD2121
  • Refresh Rate
    3840hz
  • Cabinet Size
    480*480mm
  • Module Size
    240*120mm
  • Brightness
    800cd
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-LEDIM
  • Minimum Order Quantity
    1~10
  • Packaging Details
    Quality carton with full wood box packing/Flight case
  • Delivery Time
    7-20 days

3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5

Indoor Immersive LED Display P1.57 P1.87 P2 3840hz High Refresh

Product features

– Low brightness and high gray technology, 5000:1, low power consumption

-3840Hz refresh rate, high dynamic picture display is real and natural, no smear

-Wide color gamut, uniform color, no rainbow effect, delicate and soft picture

-Metal heat dissipation, ultra-quiet fanless design

-Optional power supply and signal dual backup function

-Full front maintenance. High precision adjustment

-Die-cast aluminum design, seamless borderless, infinite splicing

3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5 0





Cabinet Specs

First class design for die casting cabinet frame, each cabinet (include all components) is only 7 kg , four sets strong fast lock to make assembling to be easier.

3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5 1

Friendly Maintenance

The cabinet adopt cable-less design and HUB board design(integrated power board and receiving card) which can be maintenence in seconds, magnetic modules with front and rear maintenance



3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5 2



Creative combination

Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations





3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5 3





Various installation mode

The thinner and lighter high-precision cabinet and interlocking function enable the installer to complete the installation very quickly and efficiently, such as direct wall mounting, hanging and stacking arc installation, thus saving time, energy and personnel costs.





3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5 4





Specifications



Pixel Pitch P1.57 P1.87 P2.5
Pixel Density 401120 284444 160000
LED Type SMD1212 SMD1515 SMD2121
Refresh Rate(Hz) 3840
Cabinet Size(mm) 480*480
Module Size(mm) 240*120 240*240 240*240
Module Resolution 152*76 128*128 96*96
Brightness(nits) 800~1000
Max Consumption(W/M) 650
Ave Consumption(W/M) 195~300
View Angle/Horizontal 140
View Angle/Vertical 90
Grey Scale(Bit) ≥14
Certificate EMC,CE,ETL,FCC, CB

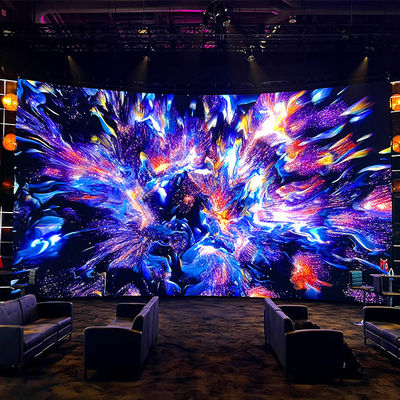

Application

3840hz High Refresh Indoor Immersive LED Display P1.57 P1.87 P2.5 5
