Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ORTP1602
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Display Function: |
Video |
Weight Per Sqm : |
65 Kg/sqm |
Module Size: |
256 Mm*256mm |
Pixel Pitch: |
16mm |
Protection Level: |
IP65 |
Tube Chip Color: |
Full Color |
Display Function: |
Video |
Weight Per Sqm : |
65 Kg/sqm |
Module Size: |
256 Mm*256mm |
Pixel Pitch: |
16mm |
Protection Level: |
IP65 |
Tube Chip Color: |
Full Color |

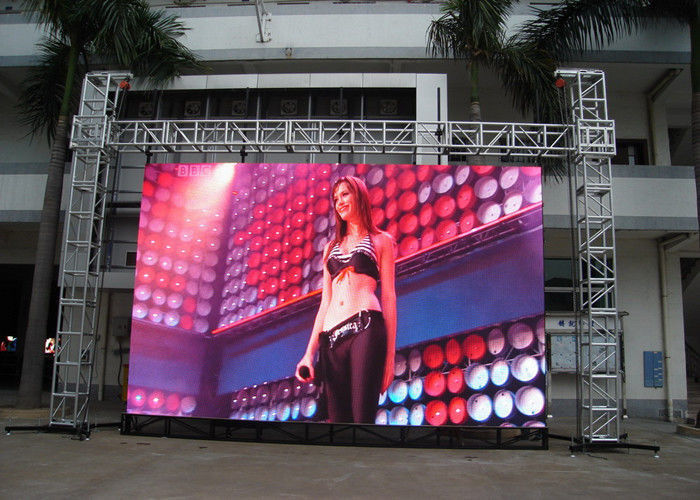

Portable Rental LED Display Billboard P16 2R1G1B Static High Resolution LED Screen
>> I-Magic Features
1. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
2. Light weight and small size: each cabinet size only 640mm*640mm*97mm, weight 13kg, frame 55mm.
3. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
4. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
5. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
6. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
7. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
8. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
| Display and control feature | Structure feature | ||
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 16 mm | Module size | 256 mm*256mm |
| Pixel composing | 2R1G1B | Display resolution | 16 *8 pixel |
| Wavelength ® | 620-630nm | Standard cabinet size | 1280 mm*960 mm |
| Wavelength (G) | 520-535nm | Weight per sqm | 65 Kg/sqm |
| Wavelength (B) | 465-475nm | Protection classification | IP65 |
| Wave Angle (H) | 110°(H)/ 60°(V) | Install mode | Wallmount, hung and stand structure |
| LED package | DIP546 | Cabinet Material | Iron/Aluminum |
| Density per sqm | 2500 pixel | Working power | |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥7500 | Working voltage | AC 220v/380v±10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 750W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 400W/sqm |
| Refresh | 400 Hz | Short circuit protection | Yes |
| Driving method | Constant Static | Led Lamp type | Red:Opto Blue:Silan Green:Silan |
| Control mode | synchronous | Working environment | |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10,000 ( scattered) | Working temperature | -20~60°C |
| lifetime | 100,000 hours | Working Humidity | 10~90% |
· ---- Our LED display signs have the ISO9001:2000 Quality System Certification;
· ---- CE Certification of our led display signs;
· ---- Rohs Certificates;
· ---- Excellent, Technical Innovation;
· ---- Price performance ratio;
· ---- Contract Performance and Credibility;
· ---- LED Displays with high brightness LED´s;
· ---- Modular LED display screens;
· ---- Our LED Display Screens have one years warranty;
