Ultra Thin SMD Rental LED Display Full Color P12mm For Commercial Advertising

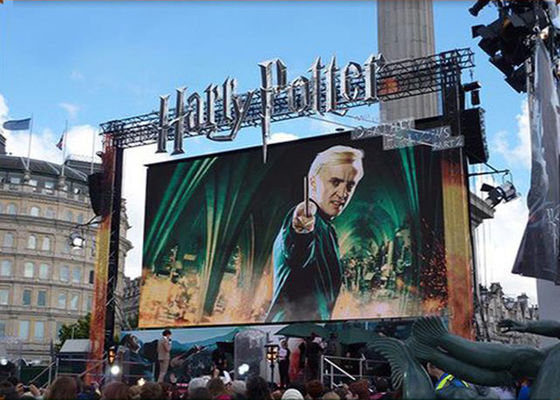

Rental LED Screen Display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
>> Features of the product
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any led in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
>> Description
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm, P31.25mm, P40mm, P50mm(DIP LED)
2). Display Color: 256*256*256
3). Led Chips: Nichia, Cotco, Cree, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
| Parameter | Unit | Value |
| Pitch | mm | 12 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle – Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 22 |
| Panel width | mm | 768 |
| Panel height | mm | 576 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 0.44 |
| Panel material | Epoxy paint coated Aluminum | |
| Panel Mode | Quick Assembly Cabinet | |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 1,1,1 |
| Resolution per panel | 64 x 48 | |
| Dot per panel | 3,072 | |
| Dot per sq. meter | 6,944 | |
| LED per sq. meter | 20,833 | |
| Recommended minimum viewing distance | m | 12 |
| Recommended best viewing distance | m | 16~42 |
| Colors | 1,073.7 million | |
| Grey scale (linear) | Levels | 1,024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / sq. m. | 868 |
| Input power (typical) | Watts / sq. m. | 347.2 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Fixed with 4pcs M10 bolts |
* Quick assembly model, 2 persons are able to assemble 20sqm within one hour
* Light weight, for indoor application, only 38kg/sqm, for outdoor application, only 45kg/sqm
* Weatherproof to IP65 standards
* High resolution images
Our products are sold all over the world, you can rest assured.
