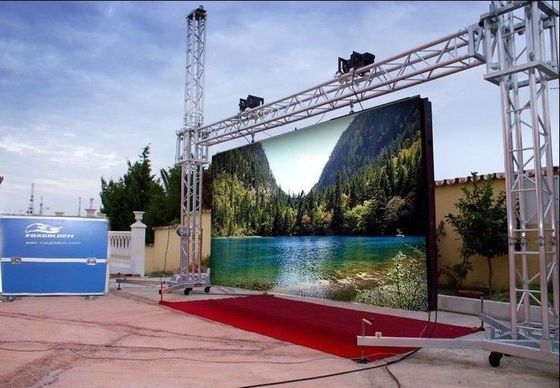

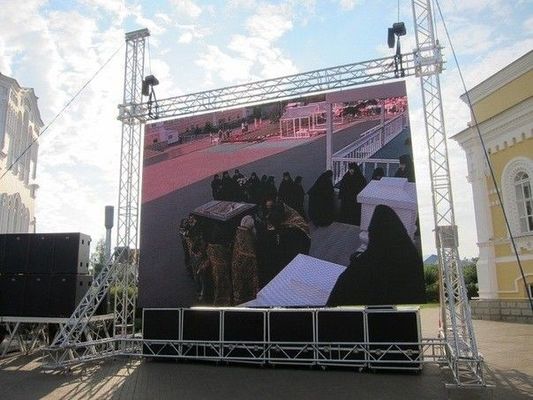

High Brightness Rent LED Screen Waterproof Indoor Led Video Walls RGB SMD 3 In 1

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-ORTP5330

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

rent led screen

,

hire led screen

Display Function:
Video
 Pixel Configuration:
1R1G1B
View Angle:
140°/140°
Pixel Pitch:
5.33mm
Cabinet size:
Normal 640 X 640mm
Tube Chip Color:
Full Color
Display Function:
Video
 Pixel Configuration:
1R1G1B
View Angle:
140°/140°
Pixel Pitch:
5.33mm
Cabinet size:
Normal 640 X 640mm
Tube Chip Color:
Full Color
Product Description

High Brightness Rent LED Screen Waterproof Indoor Led Video Walls RGB SMD 3 In 1



 1. SMD3-in-1 technology is used for indoor LED Display
 2. Wide view angle: 140 in horizontal and 140 in vertical.
 3. Special design and advanced SMT technology improves the heat dissipation.
 4, With high refresh rate controller, guarantee that no scan line when taking photos.
 5. Regular shape and special shape(such as curve, round) can be designed.
 6. Easy for assembling and connection with the connector added.
 7, High color uniformity and clear image can bring you a vivid audio visual effect.
 8. Both front access and rear access are available.

Product Parameter
1 Pixel Information Pixel Pitch 5.33mm
Pixel Density 35,200dots/m²
Pixel Configuration 1R1G1B
2

Viewing
Brightness ≥3500 CD/m²
View Angle 140°/140°
Optimum Viewing Distance >5m
Gray Level RGB/8192/14bit
3 Power Supply Working Voltage 110V~±15% or 230V~±15%
Max Power Consumption 900W/m²
4 Ambient Conditions Operating Temperature -20°C~+60°C
Operating Humidity 35%-85%
5

Processing
Driving Method 1/8scan, Constant Current
Refresh Rates ≥800Hz
Signal Input RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control System Sending card + Receiving card + Hub card +PCTV Non-liner card + Muti-funcational card(Optional) + Video processor(Optional)
+ Fiber Transmitter (Optional)
6

Cabinet
Cabinet thickness < 8cm
or Designed by requirements
Cabinet weight < 10kg/cabinet
Cabinet size Normal 640 x 640mm
Cabinet material Aluminum alloy or Iron, Steel
7





Others
Life Span >100,000hours
Blind Spot Rate <0.00001
LED encapsulation SMD3528
Color Temperature/contrast Brightness and contrast of red, green and blue
can be adjusted by software.
Image Processing Video denoising, rapid motion compensation,
edge sharpening, edge smoothing
Color coordinate conversation & control,
grey scale transformation etc
Brightness uniformity Ratio of min pixel brightness/ max pixel<0.9
(when each color reaches its highest brightness)
Effective control distance Cat-5<100M, Muti-mode fiber: <500M;
single- mode fiber<20Km


 >> Introduction

 1) SMD3-in-1 technology is used for indoor LED Display.
 2) Wide view angle: 140 in horizontal and 140 in vertical.
 3) Special design and advanced SMT technology improves the heat dissipation.
 4) with high refresh rate controller, guarantee that no scan line when taking photos.
 5) Regular shape and special shape (such as curve, round) can be designed.
 6) Easy for assembling and connection with the connector added.
 7) High color uniformity and clear image can bring you a vivid audio visual effect.
 8) Both front access and rear access are available.
 9) Items: BESD-IFP4, BESD-IFP5, BESD-IFP5.33,BESD-IFP6, BESD-IFP7.62, BESD-IFP8, BESD-IFP10

 >> Display Image Performance

 1. wide view angle DIP/SMD LED is used for improving the view areas,meanwhile,make the LED display more smoothly.
 2. High brightness and waterproof DIP/SMD LED is used for outdoor,and low brightness SMD LED for indoor.
 3. High conformity of color and brightness makes the color of the display images more vivid.
 4. High contrast ratio and high refresh rate technology makes the LED display peiformed well without any timelapse. 4.High contrast ratio and high refresh rate technology makes the LED display peiformed well without any timelapse.
 5. Each specified LED cabinet can be guaranteed with the same brightness and color in different orders.This calibration technology is helpful for rental companies to extend the display as they like.
 6. Item:BESD-IFP4, BESD-IFP5, BESD-IFP6, BESD-IFP7.62, BESD-IFP8, BESD-IFP10, BESD-OFP10,BESD-OFP12,BESD-OFP12.5,BESD-OFP16,BESD-OFP20,BESD-OFP25etc.
