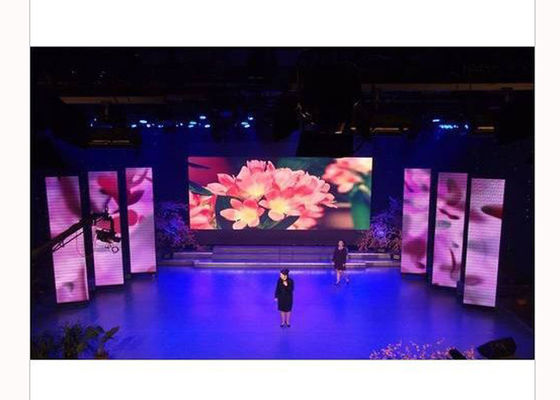

P3.9 P4.8 Large Video Wall Displays Led Hd Screen For Concerts , TV Station Wall
LED Video Wall Panels is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.
1. Die-casting aluminum materials for super light and thin structure.
Cabinet Size: 500x1000mm
The total weight of the cabinet is only 10kg.
The Thickness of the cabinet is only 79mm
2. High contrast, high refresh rate,making the LED display without any delay rendering the image smear phenomenon.
3. Fast , flexible positioning installation connections, can effectively respond to different application areas .
4. The use of corrugated absorbance mask technology
>> Technical Specification
| Module | Pitch/mm | P3.9 | P4.8 |
| Module size/mm | 500x250 | 500x250 | |
| Density of pixel/(dots/m2) | 65,536 | 43,264 | |
| Pixel composition | 1R1G1B | 1R1G1B | |
| Led encapsulation | SMD2121 | SMD3528 | |
| Resolution of module | 128X64 |
104X52 |
|
| Main | Optimum viewing distance | ≥3 | ≥4 |
| View angle / ° | 140 H,110 V | 140 H,110 V | |
| Average power consumption/W/M2 | 200 | 200 | |
| Max power consumption/W/M2 | 400 | 400 | |
| Size of cabinet/mm | 500X1000 | 500X1000 | |
| Resolution of cabinet | 128X256 | 104X208 | |
| Weight of cabinet/kg | 10KG | 10KG | |
| Driving method | 1/16 scan constant current | 1/13 scan constant current | |
| Frame frequency / Hz/S | ≥60 | ≥60 | |
| Refresh rate Hz/S | ≥600 | ≥600 | |
| Luminance of white balance | ≥2000 nits | ≥2000 nits | |
| Operation of Environmental Temperature | below 30 to above 50 | below 30 to above 50 | |
| IP rating | Front,IP43;Rear,IP34 | Front,IP43;Rear,IP34 | |
| Working vlotage | 110-220V AC/+/- 10% | 110-220V AC/+/- 10% | |
| Grey scale/color | displaying colors≥1.07B(synchronized) | displaying colors≥1.07B(synchronized) | |
| Brightness adjustment | 256 levels of each color(manually), 256 levels of each color(automatically) | 256 levels of each color(manually), 256 levels of each color(automatically) | |
| Input signal | RF,S-Video ,RGB, RGBH, YUV, YC &Composition ,etc | RF,S-Video ,RGB, RGBH, YUV, YC &Composition ,etc | |
| Control system | Linsn (sending card ,receiving cards and Hubs) | Linsn (sending card ,receiving cards and Hubs) | |
| Average of non-failure life | >5,000h | >5,000h | |
| Life span | >100,000h | >100,000h | |
| Functionaless dot rate | <0.0001 | <0.0001 | |
>> Function and Technology characters
1. Show all kinds of word, text, graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc. We have three display modes as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
3. 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade
4. Line-Double technology is adopted for the picture adjustment.
5. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
6. It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc
