Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-LVWP4000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
128*128mm / 256*128mm |
Brightness: |
>=1800CD/sqm |
Tube Chip Color: |
Full Color |
LED Composition: |
1R1G1B |
Pixels: |
4mm |
Refresh: |
>=600 HZ |
Module Size: |
128*128mm / 256*128mm |
Brightness: |
>=1800CD/sqm |
Tube Chip Color: |
Full Color |
LED Composition: |
1R1G1B |
Pixels: |
4mm |
Refresh: |
>=600 HZ |

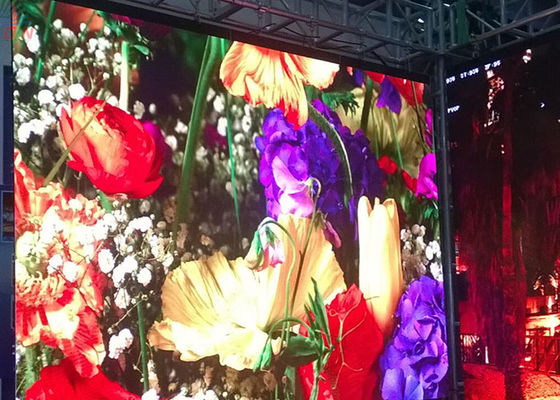

Stage Background HD LED Video Wall Display , Full Color RGB 4mm LED Screen
>> Function and Technology characters
1. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc. We have three display modes as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
2. 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade
3. Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
4. It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc
>> Parameter
| Pixel Pitch | 4mm |
| Pixel configuration | 1R1G1B |
| View angle | 140°/140° |
| Pixel density | 62,500dots/sqm |
| Module size | 128*128mm / 256*128mm |
| Module Resolution | 32*32dots / 64*32dots |
| LED encapsulation | SMD 2121/SMD 0606 |
| Refresh rates | >=600 HZ |
| Driving Method | 1/16 scan , constant current |
| Max power consumption | 1,000W/sqm |
| Brightness | >=1800CD/sqm |
| Display Function | Graphics, Animation, and video |
| Working voltage | 110V~±15% or 230V~±15% |
| Working temp | -20°C to +60°C |
| Optimum viewing distance | >3m |
| Working Humidity | 35% ~ 85% |
| LED parameters | R:625nm±5.0nm, IV:400-500mcd |
| G:525nm±2.5nm,IV:800-2,200mcd | |
| B:470nm±2.5nm,IV:350-450mcd | |
| MTBF | >5,000hous |
| Gray Level | RGB/8192/14bit |
| Life span | >100,000hours |
>> Advantage
1) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal
2) High contrast ,High refresh rate and High brightness that the content on the display remains clearly visible under direct sunlight without any delay, smear phenomenon.
3) The brightness can be adjustable to meet the need of changing requirement of customer in environment
4) Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
