Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-HDP6004
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Dimension: |
240*240 Mm |
Brightness: |
>1,300nits |
Tube Chip Color: |
Full Color |
LED Composition: |
1R1G1B |
Pixels: |
5mm |
Scan Mode: |
1/12 Scan |
Module Dimension: |
240*240 Mm |
Brightness: |
>1,300nits |
Tube Chip Color: |
Full Color |
LED Composition: |
1R1G1B |
Pixels: |
5mm |
Scan Mode: |
1/12 Scan |

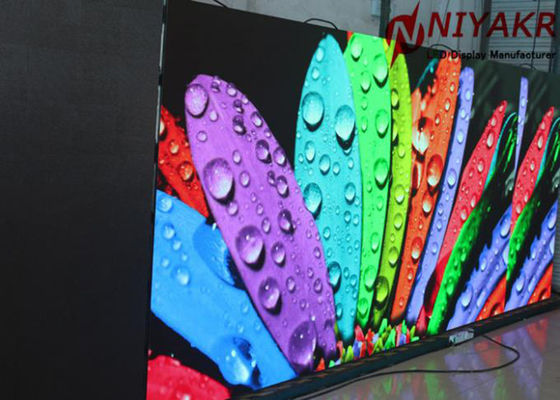

Indoor P5 5mm HD LED Video Wall Full Color Aluminum Waterproof LED Display
>> P5 LED Video Wall Features
1. SMD3-in-1 technology are used for indoor LED display.
2. Wide view angle: 140 in horizonal and 140 in vertical.
3. Special design and advanced SMT technology improves the heat dissipation
4. With high refresh rate controller, guarantee that no scan line when taking photos.
5. Regular shape and special shape (such as curve, round) can be designed.
6. Easy for assembling and connecting with the connector added.
7. High color uniformity and clear image can bring you a vivid audio visual effect.
>> Basic introduction - Indoor P5 LED Video Wall
> For real 5mm pixel pitch indoor rental LED screen
> 40,000 pix/m2 pixel density
> Die-casting aluminum has better heat dissipation
> Full-HD Processing with DVI, VGA, HD-SDI inputs
> Lightweight at just 8.5kg per cabinet
> This cabinet size 480mm x 480mm x 60mm is also universal for P4 LED screen
| Visual Parameter | |
| Pixel Pitch: | 5mm |
| Pixel Density: | 40,000 pixels/m2 |
| Pixel Configuration: | SMD3528 |
| Module Dimension: | 240*240 mm |
| Cabinets Dimension: | 480*480 mm |
| Cabinets weight: | 8.5 kg/cabinet |
| Cabinet Material: | Die-casting Aluminum |
| Performance Parameter | |
| Brightness: |
>1,300nits |
| Best Viewing Distance: | > 5m |
| Average Power Consumption: | 320 w/m2 |
| Max Power Consumption: | 850 w/m2 |
| Scan Mode: | 1/12 scan |
| Viewing Angle: | Horizontal angle: 120 degree, Vertical angle: 120 degree |
| Gray Scale Level: | 14 bit |
| Refresh Rate: | >1,200Hz |
| LED Lifetime: | >50,000 hours |
| Environment Parameter | |
| Input Voltage: | 200~240vAC, 50/60Hz |
| Operating Temperature: | -20°C~60°C |
| Operation Humidity: | 10%~90%RH |
| Ingress Protection: | IP31 |
| Control Parameter | |
| Control System: | NOVA / LINSN |
| Compatible video interface: | YC, VGA, DVI, YUV, SDI, RGB, CVBS, HD-SDI |
