High Resolution Flexible LED Screen Full Color 12mm Wide Viewing Angle

High Resolution Flexible LED Screen Full Color 12mm Wide Viewing Angle

  • High Light

    flexible led curtain display

    ,

    flexible led video panels

  • Tube Chip Color
    Full Color
  • Pixels
    12mm
  • Display Function
    Video
  • Brightness
    >5000nits
  • Module Dimension
    288*288 Mm
  • Panels Weight
    11 Kg/panel
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-OFSP1200
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

High Resolution Flexible LED Screen Full Color 12mm Wide Viewing Angle


High Resolution Flexible LED Screen Full Color 12mm Wide Viewing Angle



 1. Most flexible --- creative foldable structure, could make any shapes of screen. Like Circle, Wave, Cube, Arch etc.
 2. Ultra light weight --- less than 10kg per square meter, the lightest one is only 1kg per panel, bring great convenience for transportation and installation.
 3. Super thin --- the thickest is only 30mm per panel, allow be installed in particularly narrow space.
 4. Transparency--- unique design of panel, allow the smoking, lighting, laser and sound effects to pass through the screen to make your stage more amazing.
 5. Easy installation and dismantling --- quick lock and self-position design, do not need other assistant tools to assemble and disassemble the panels.
 6. Protection level: IP65--- can prevent dust and rain from entering; can withstand strong winds and extreme weather conditions.

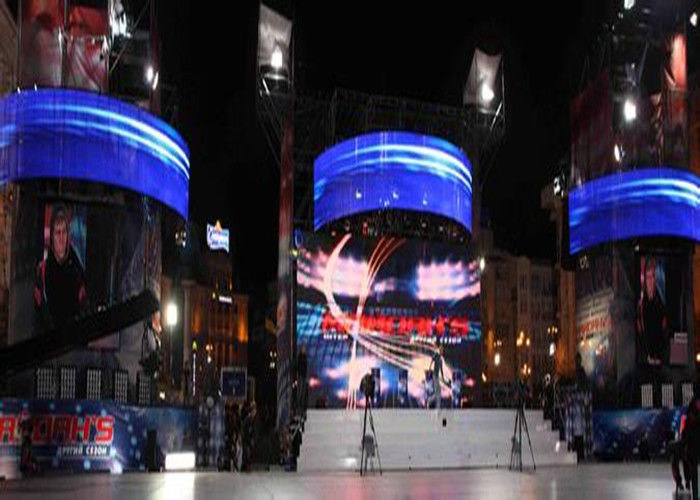

 The flexible led screen are designed with easy assembly and good transparency, outputting a high brightness of up to 5,000 nits with excellent colour uniformity for great visual effects whether indoor or outdoor. Now the curtain models add a whole new level of flexibility with the ability to convert a panel from curtain to solid display.
flexible led screen are equipped with a specially designed angling system (with five angle options) enabling build of curved shaped screens in both horizontal and vertical formats, and in either convex or concave configuration. You can have the curtain sceens standing with external frame or being hanged from rigging truss. With advanced IP65 waterproof protection, curtain series panels are the smart choice for all rental companies requiring high flexibility and configurability.

Pixel Pitch: 12 mm
Pixel Density: 6944 pixels/m2
Pixel Configuration: SMD3535(Black LED is available too)
Module Dimension: 288*288 mm
Panels Dimension: 576*576 mm
Panels weight: 11 kg/panel
Panel Material: Aluminum profile
Performance Parameter
Brightness: >5000nits
Best Viewing Distance: > 12m
Average Power Consumption: 350 w/m2
Max Power Consumption: 850 w/m2
Scan Mode: 1/2 scan
Viewing Angle: Horizontal: 120 degree, Vertical: 120 degree
Gray Scale Level: 14 bit
Refresh Rate: >2200Hz
LED Lifetime: >50,000 hours
Environment Parameter
Input Voltage: 110/220/240v AC, 50/60Hz
Operating Temperature: -20°C~60°C
Operation Humidity: 10%~90%RH
Ingress Protection: Front IP65, rear IP54
Control Parameter
Control System: NOVA / LINSN
Compatible video interface: YC, VGA, DVI, YUV, SDI, RGB, CVBS, HD-SDI



 >> Products Advantages


 1) Price Advantage: we have the best competitive price at the market; also have the same even better quality;
 2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps;
 3) Quality advantage: From material to finished product, from design to produce, we control all steps that are the guarantee of the quality and reliability;
 4) Service advantage: Better service at same situation, better cooperation at same service.
