Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFSP6000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
6mm |
Display Function: |
Video |
Cabinet area: |
0.737mm |
Module size(mm): |
192mm*192mm(W*H) |
Refresh frequency: |
Min 800Hz |
Tube Chip Color: |
Full Color |
Pixels: |
6mm |
Display Function: |
Video |
Cabinet area: |
0.737mm |
Module size(mm): |
192mm*192mm(W*H) |
Refresh frequency: |
Min 800Hz |

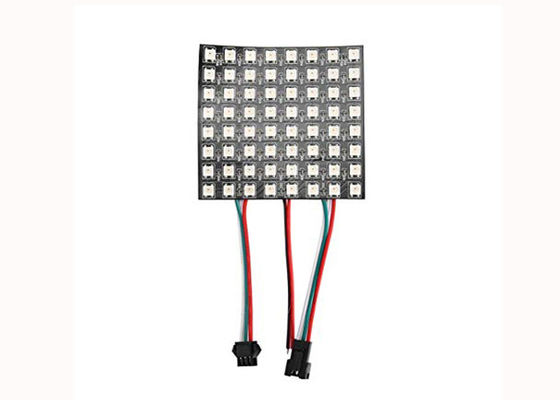

Super Slim Flexible LED Screen Full Color SMD LED Billboard Advertising Rental
>> Features
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
>> Application scopes
Widely applied to traffic information distribution of station,quay and qirport,conference,shoppingmall,brand presentantion,TVstation,stageshow,concert and so on.
>> Parameter
| Item | property | ||
| Resolution | 6mm | Max.power consumption | Max 800W/mm |
| Type | SMD 3in1 | Avg.power consumption | Max 219W/mm |
| Module | Max.current. | Max 5.02A/220V, 50HZ | |
| Pixel configuration | 1R1G1B | Horizontal viewing | 140 |
| Drive mode | 1/16 scanning | Vertical viewing angle | 140 |
| Module Re.(Dot) | 32*16(W*H) | Brightness(CD/mm) | Min 1300cd/mm |
| Pixel pitch(mm) | 6mm | Pixel density(Dot/mm) | 277777/mm |
| Module size(mm) | 192mm*192mm(W*H) | Power factor | Min 0.7 |
| Cabinet | Cert. | UL,CE,ETL,ROHS | |
| LED board array | 5*8(W*H) | Contrast | 2000:1 |
| Cabinet Re.(Dot) | 160*128(W*H) | Working temperature | -10℃-+50℃ |
| Cabinet area | 0.737mm | Working humidity | 20% to 90% |
| Cabinet size | 960*768mm(W*H) | Lifespan(50%) | 100,000hours |
| Weight | 18kg Alumimum/Cild rolled sheet | Processing | 12 bit |
| Power | AC220/110,47~63HZ | Colors | 687 billion |
| Ingress Protection | N/A | Refresh frequency | Min 800Hz |
| Service access | Rear/Front | ||
>> Function and Technology Character
· High contrast ratio,high refresh rate and high gray scale.
· vivid image show brilliant visual performance.
· wide viewing angle with superior color uniformity.
· hign mechanical precise design for die-casting aluminium cabinet,smooth and gapless surface.
· Ultra-Slim and Ultra-light weight,fashionable and beautiful.
· Low power consumption thus do not generate as much heat,more economical and environmentally friendly.
· High reliability and long lifespan,high-efficiency in heat radiating.
· Easy and convenient to assemble and disassemble,fast installation.
