Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFSP4000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
4mm |
Display Function: |
Video |
Brightness: |
>2,600cd/sq.m |
Module Size: |
256*128mm |
View Angle: |
150°/150° |
Tube Chip Color: |
Full Color |
Pixels: |
4mm |
Display Function: |
Video |
Brightness: |
>2,600cd/sq.m |
Module Size: |
256*128mm |
View Angle: |
150°/150° |

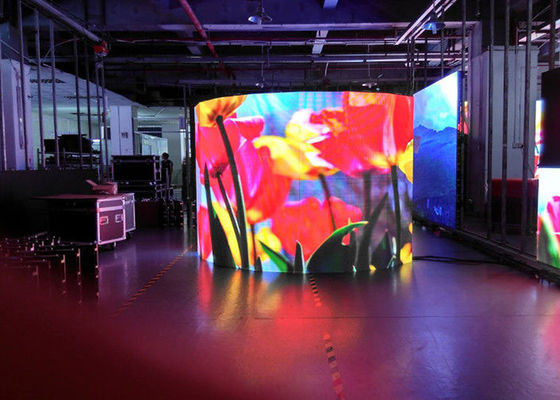

Full Color Flexible LED Screen LED Stage Curtain Screen 4mm Pixels Energy Saving
>> Applications
P4 soft LED Display is widely used in indoor stadiums, business applications, banking, securities, postal services, terminals, shopping malls, railway stations, postal services, telecommunications, agencies, monitoring, schools, restaurants, hotels, entertainment, businesses and other places of different indoor advertising.
>> Description
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via Lan and remote control.
>> Specification
| Resolution | 64(H)×32(V) |
| Pixel Pitch | 4mm |
| LED Configuration | 1R1G1B 3-IN-1 SMD |
| Pixel Density | 62,500 pixels/ sq.m. |
| Module Size | 256*128mm |
| Driving IC | MBI5024 |
| Driving Method | 1/8 Scan, Constant Current |
| Cabinet Weight | 42kg/sq.m. |
| Mechanical Ratings | |
| Hanging Weight Support | 2T |
| Surface Flatness | Gap<0.5mm |
| Optical Ratings | |
| Brightness | >2,600cd/ sq.m. |
| View Angle | 150°/150° |
| Gray Scale | 8bits input, correction with 14bits |
| Display COLOR | 16.7M |
| Brightness Adjustment | 0~100% |
| Power Supply | |
| Operation Power | 90~260V 50~60Hz |
| Max. Power Consumption | 850W/ sq.m. |
| Average Power Consumption | 280W/ sq.m. |
| Control System | |
| Control Mode | Synchronous display with control PC by DVI |
| Frame Update Frequency | 60~85Hz |
| Screen Refresh Frequency | 300~1000Hz |
| Gamma Correction | -5.0~+5.0 |
| Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
| Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
| Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
| Brightness Correction | Pixel, Module, Cabinet |
| Environmental | |
| Operating Temperature | -20°~+60° |
| Operating Humidity | 10~95% RH |
| Operating Life | 100,000hours |
| MTBF | 5000hours |
| Protection Level | ~ |
| Out of Control Rate |
<0.02%
|
>> Competitive Advantage
1. The ultra-slim and ultra-lightweight structure, increased design opportunities and lower transportation costs.
2. Advanced Surface Mount Technology (SMD)technology takes super wide viewing angle for the LED display;
3. Better color performance, higher contrast and refresh ratio,high luminance and definition
4. No significant color loss from the standard viewing angle
5. Professional lock design makes seamless connection available
6. Very stable and safety
7. Latest design of arc led display, even to the 360 angle
