Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFSP1250
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
10mm |
Display Function: |
Video |
Brightness: |
>6500nit |
Viewing Angle: |
110(Horizontal),55(Vertical) |
Malfunction Dot Rate: |
Less Than 0.0001 |
Tube Chip Color: |
Full Color |
Pixels: |
10mm |
Display Function: |
Video |
Brightness: |
>6500nit |
Viewing Angle: |
110(Horizontal),55(Vertical) |
Malfunction Dot Rate: |
Less Than 0.0001 |

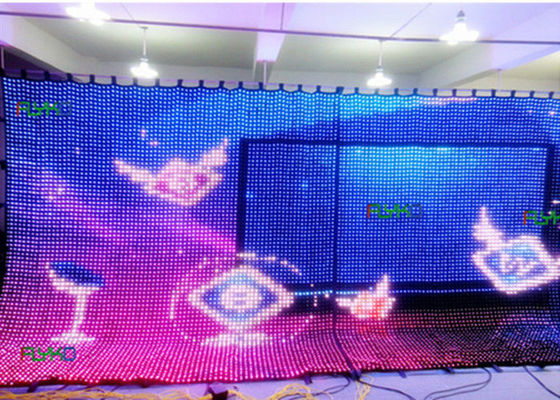

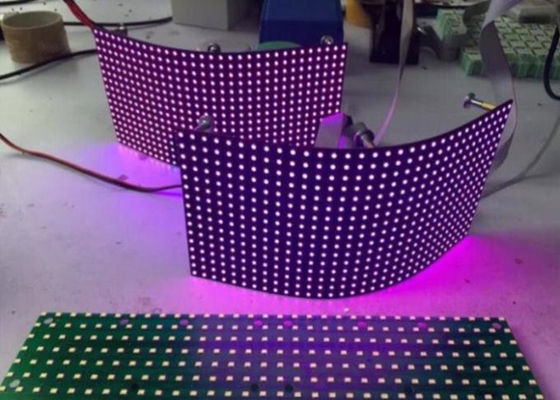

Ultra Light P12.5 Flexible LED Screen Board Soft Cabine Big LED Video Screen Hire
>> Product Features
1). Adopting the brightness and hue adjustment technologies, eliminate the bright and dark patches
and plagues, realized the color and brightness uniform of the whole display; Taking the HDTV
standards as color correction reference, restore nature vivid colors for the whole display.
2). Meticulos design of modules reduce the plane difference to less than 0.2 mm, effectively eliminate
the mosaic phenomenon and ensure the excellent flatness and contrast of the whole display.
3). Modular ultra light cabinet with fast lock and dowel pin on it make it quite easy for installation, disassemble and maintain. It can realized lifting or piling installation on site.
4). Cabinet made of good quality pressure-casting aluminum can bear load strength and reduce deformation; it's suitable for large entertainment.
>> Specification
| Item | Specifications | |
| LED Lamp | Type | 12.5 mm dismeter high brightness LED lamps |
| Arrangement | 1R,1G,1B | |
| Red Wavelength (dominant) | 625nm(+2.5nm) | |
| Green Wavelength (dominant) | 523nm(+2.5nm) | |
| Blue Wavelength (dominant) | 470nm(+2.5nm) | |
| LED Cabinet | Dot Pitch | 12.5 mm |
| Physical Pixel | 6400dots/sq.m | |
| Resolution | 80*80pixel | |
| Dimension | 1000*1000mm | |
| Brightness | above6500nit | |
| Viewing Angle | 110(Horizontal),55(Vertical) | |
| Best Viewing Distance | 12~150 meters | |
| Power Consumption (Max) | 600 w/sq.m | |
| Power Consumption (Typical) | 200 w/sq.m | |
| Weight | 50 Kgs/sq.m | |
| Frame Frequency | no less than 60 frame/sec | |
| Refresh Rate | no less than 800 HZ/sec | |
| Voltage | 220/110 VAC, 50/60 Hz | |
| MTBF | 5000 hours | |
| Life Pan | 100,000 hours | |
| Protection Level | IP 65 | |
| Malfunction Dot Rate | less than 0.0001 | |
| Working Temperature | -25°C~65°C | |
| Humidity | 10%~99% | |
| Control System | Drive Mode | static constant current |
| Control Mode | synchronous /asynchronous | |
| Control System |
PCTV Board + DVI Board + Control Board + Network cable Transmission |
|
| Software | LED Studio (LINSN) | |
| Input Signal | RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION | |
| PC System | Win2000,Win XP, etc | |
| Features |
- GENELITE /CREE lamp with uniform color and high reliability - Special structure design for water-proof and mothproof |
|
1). For outdoor display, super bright, supports any format of video
2). Easy and simple installation interface and user friendly software to ensure the easy operation the
LED display system.
3). Our LED displays are widely used in commercial advertising, indoor led video wall, entertainment industry, stage events, concerts, financial industry, communications, power sector, traffic, stadium, plaza, school, airport et., for advertising and displaying messages.
