Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-134-17558100
Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-S3P1251
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
200*168.75mm |
Pixels: |
1.25mm |
Module Resolution: |
160*135dot |
Cabinet Wegiht: |
7.5kg/pc |
Operating Humidity: |
10% - 95% |
Viewing Distance: |
1-60m |
Module Size: |
200*168.75mm |
Pixels: |
1.25mm |
Module Resolution: |
160*135dot |
Cabinet Wegiht: |
7.5kg/pc |
Operating Humidity: |
10% - 95% |
Viewing Distance: |
1-60m |

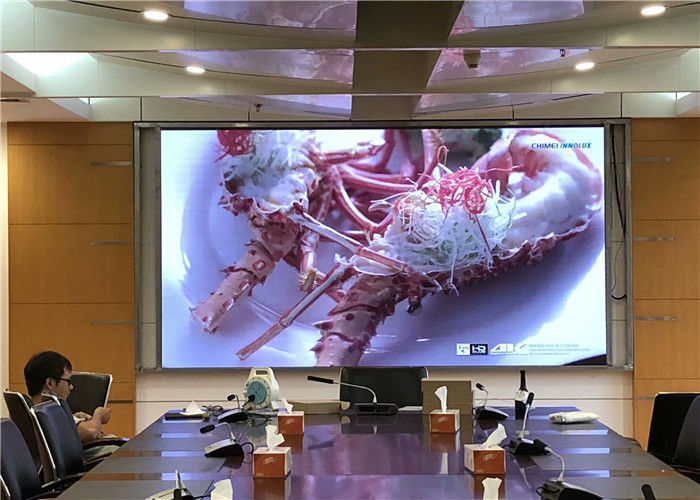

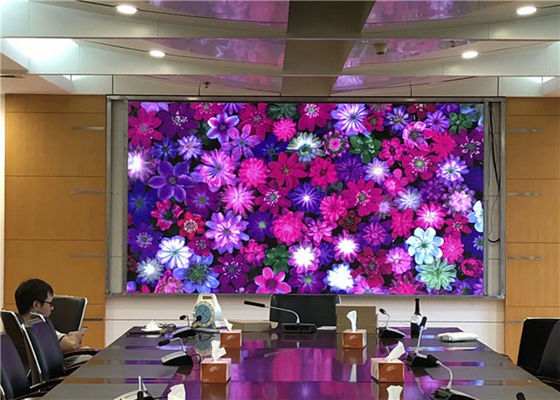

Indoor Small Pixel Pitch LED Display Screen P1.25 Die Casting Aluminum Cabinet
>> Features
1. 16:9 HD ratio, high refresh to play HD 4K Video
2. Black nationstar led lamp to improve the contrast ratio to be 5000:1
3. Power supply and Signal Dual backup to ensure led screen working stable
4. Total front instalaltion and maintenance to ensure the installation easily.
| Item | parameter |
| Pixel Pitch | PH1.25mm |
| Pixel Density | 640.400dos/sqm |
| LED Package | Black SMD1010 |
| Module Size | 200*168.75mm |
| Module Resolution | 160*135dot |
| Cabinet Size | 600*337.5mm |
| Cabinet Resolution | 480*270dot |
| Cabinet Wegiht | 7.5kg/pc |
| Viewing Angle | 140°/140° |
| Viewing Distance | 1-60m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 195W/sqm |
| Ave. Power Consumption | 110W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1. Excellent effect: Using dynamic scanning technology, the picture is stable, no noise, the image effect is clear, the animation effect is vivid and diverse, and the video effect is smooth and realistic;
2. Rich in content: can display text, graphics, images, animation, video information;
3. Flexible mode: the user can arbitrarily arrange the display mode;
4. the cabinet customization: the cabinet supports customized size;
5. Excellent viewing angle: both horizontal and vertical have a large viewing angle, which is suitable for environments with wide horizontal distribution and large height difference;
6. High reliability: using distributed scanning technology and modular design technology, reliability and stability are higher;
7. Quality assurance: the use of imported luminescent materials, high-quality IC chips, noise-free high-power power supply; tensile and shockproof, 10 years of long life;
8. Easy maintenance: modular design, easy installation and maintenance.
>> After Sales Service
1. 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
