Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-S3P2001
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
240*240mm |
Pixels: |
2mm |
Cabinet Wegiht: |
8.5kg/pc |
Viewing Angle: |
140°/140° |
Viewing Distance: |
2-60m |
Max Power Consumption: |
600W/sqm |
Module Size: |
240*240mm |
Pixels: |
2mm |
Cabinet Wegiht: |
8.5kg/pc |
Viewing Angle: |
140°/140° |
Viewing Distance: |
2-60m |
Max Power Consumption: |
600W/sqm |

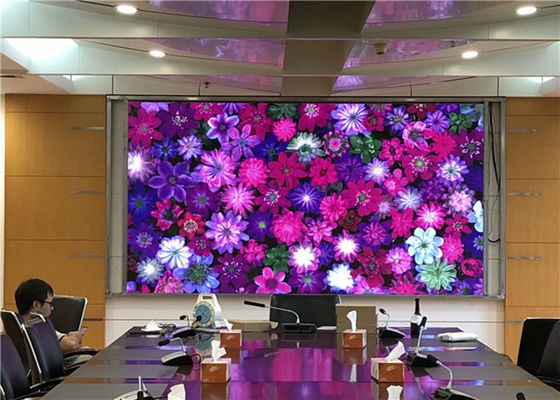

High Definition Small Pixel Pitch LED Display 2mm Pixel Pitch Long Life Span
>> Features
1. With high resolution to play 4K HD Video
2. Black nationstar led lamp to improve the contrast ratio to be 5000:1
3. Power supply and Signal Dual backup to ensure led screen working stable
4. Nationstar led lamp with high-quality 4-layer PCB materials to ensure the lifespan
5. Unique PCB Design to low the power consumption
| Item | parameters |
| Pixel Pitch | PH2mm |
| Pixel Density | 250,000dos/sqm |
| LED Package | BLACK face SMD1010 |
| Module Size | 240*240mm |
| Module Resolution | 120*120dot |
| Cabinet Size | 480*480mm |
| Cabinet Resolution | 240*240dot |
| Cabinet Wegiht | 8.5kg/pc |
| Viewing Angle | 140°/140° |
| Viewing Distance | 2-60m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 600W/sqm |
| Ave. Power Consumption | 180W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1. Small pixel pitch with high definition enables 4K video wall display;
2. LED lamp with high contrast, high brightness, high grayscale, and high refresh rate
3. Die-casting aluminium design, ultra light and ultra-thin, high accuracy
4. Wide viewing angle, and seamless connection
5. Noise-free, lower power consumption, and longer life span
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
