Outdoor Curved LED Screen 10mm Pixel Pitch Waterproof Energy Saving PCB Design

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-OCUP1010

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

curved video screen

,

360 degree led display

Brightness:
>6000nits
Max Power Consumption:
730W/sqm
Pixels:
10mm
Working Temperature:
-20℃ - +60℃
Module Size:
320*160mm
Cabinet Resolution:
96*96dot
Brightness:
>6000nits
Max Power Consumption:
730W/sqm
Pixels:
10mm
Working Temperature:
-20℃ - +60℃
Module Size:
320*160mm
Cabinet Resolution:
96*96dot
Product Description


Outdoor Curved LED Screen 10mm Pixel Pitch Waterproof Energy Saving PCB Design



 >> Features



 1. Special Cabinet design to match different curve environment

 2. PCB design innovation to improve the energy-saving

 3. High quality module housing materials to enlarge the lifespan

 4. High quality waterproof : Top module ,cabinet design to ensure good waterproof function



Item parameter
Pixel Pitch 10mm
Pixel Density 10,000dos/sqm
LED Configuration Nationstar 3535
Module Size 320*160mm
Module Resolution 32*16 dots
Cabinet Size 960*960mm
Cabinet Resolution 96*96dot
Brightness >6000nits
Refresh Rate >1920hz
Viewing Distance 10-100m
Power Input AC110V - 220V ±15%, 50HZ
Max Power Consumption 730W/sqm
Ave. Power Consumptio 295W/sqm
Working Temperature -20℃ - +60℃
Lifespan >100,000 Hours
Input Voltage AC 110-220v, +-15%
Input Source All Format (AVI, MPEG,VOB, RM, etc)



 >> Description



 1. Usage : Special Curve design of Hotel, shopping mall, 4s stroes, etc

 2. Installation : Wall-mounted, standing on floor or building Top. etc

 3. Control : Contolled by your computer ,own equipment.; or adopt wireless controller

 4. Connection : Connected to your computer or own equipment.

 5. Maintenance: Enough Free spare parts for replacement, front service easier to change.



 >> After Sales Service



 1. 1 years warranty

 2. Free factory training

 3. 24/7H online support

 4. Lifetime free repair and tech support

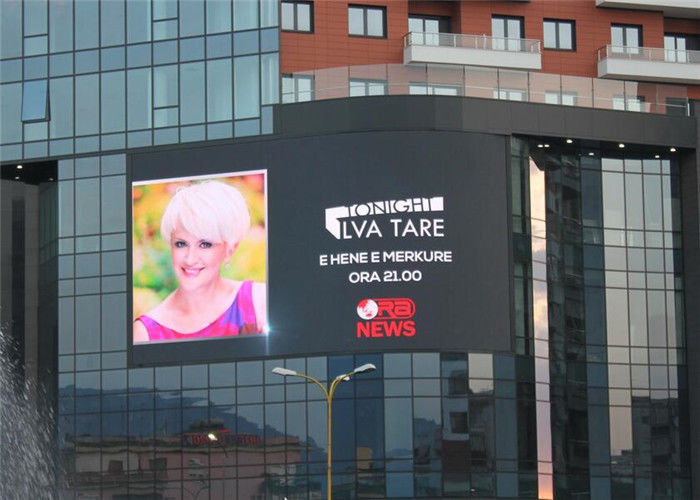

Outdoor Curved LED Screen 10mm Pixel Pitch Waterproof Energy Saving PCB Design 0

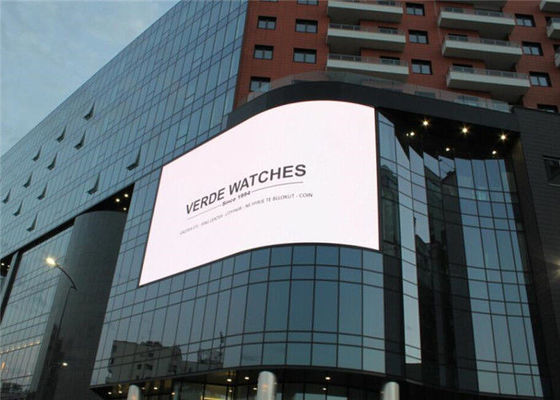

Outdoor Curved LED Screen 10mm Pixel Pitch Waterproof Energy Saving PCB Design 1
