Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-HDP3001
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Brightness: |
>980nits |
Cabinet Weight: |
9kg/pc |
Pixels: |
3mm |
Refresh Rate: |
>1920hz |
Module Size: |
240*240mm |
Cabinet Resolution: |
160*160dot |
Brightness: |
>980nits |
Cabinet Weight: |
9kg/pc |
Pixels: |
3mm |
Refresh Rate: |
>1920hz |
Module Size: |
240*240mm |
Cabinet Resolution: |
160*160dot |

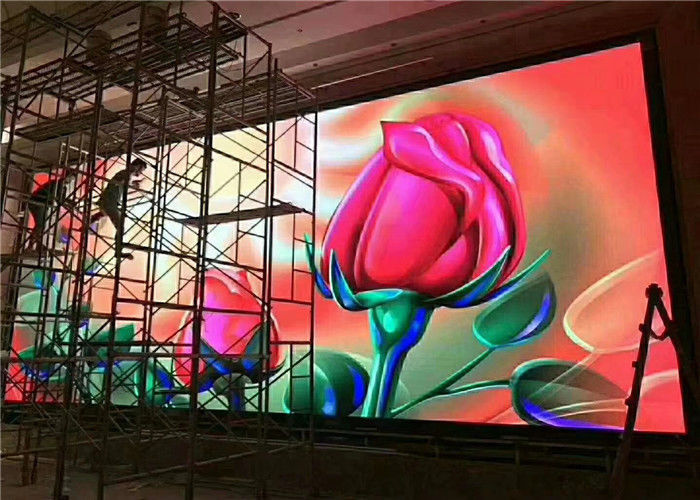

Smd Indoor HD LED Video Wall Display 3mm Pixel Pitch Big Seamless TV Screen
>> Features
1. Seamless Video wall solution ensure the Large led screen flatness and uniformity
2. Nationstar LED lamp to ensure the vivid color and bigger viewing angle
3. Light Die casting cabinet size 480*480mm. fast lock to do the installation
4. Easy maintenance, dismantle module and power supply from front directly
5. Total Front installation and Maintenance. save time, labor and cost
>> Specification
| Item | Parameters |
| Pixel Pitch | PH3mm |
| Pixel Density | 111,111 dos/sqm |
| LED Package | Black Face SMD2121 |
| Module Size | 240*240mm |
| Module Resolution | 80*80dot |
| Cabinet Size | 480*480mm |
| Cabinet Resolution | 160*160dot |
| Cabinet Materials | Die casting aluminum |
| Cabinet Weight | 9kg/pc |
| Brightness | >800nits |
| Refresh Rate | >1920hz |
| Viewing Angle | 140°/140° |
| Max Power Consumption | 650W/sqm |
| Ave. Power Consumption | 280W/sqm |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Certificate | CE,ROHS,FCC,ACMA |
| Input Source | HDMI,SDI,DVI,AVI, MPEG,VOB, RM, etc) |
>> Description
1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc
2. Installation: Mounted-wall, standing on the floor. hanging etc
3. Connection: Connected to your computer, Camera or own equipment.
4. Maintenance: Front service help you save labour and maintenance cost
>> After-sale service
1. Lifetime free maintenance and upgrade.
2. Complaint responds period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big projects, such as the stadium, exhibitions, squares and so on.
