High Brightness LED Display Panels 2.5mm Pixel Pitch For Commercial Advertising

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-HDP2502
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Brightness >950nits Cabinet Weight 6.5kg/pc
Pixels 2.5mm Refresh Rate >4000hz
Module Size 240*240mm Cabinet Resolution 192*192dot
High Light

hd led display

,

high definition led display

Leave a Message
Product Description

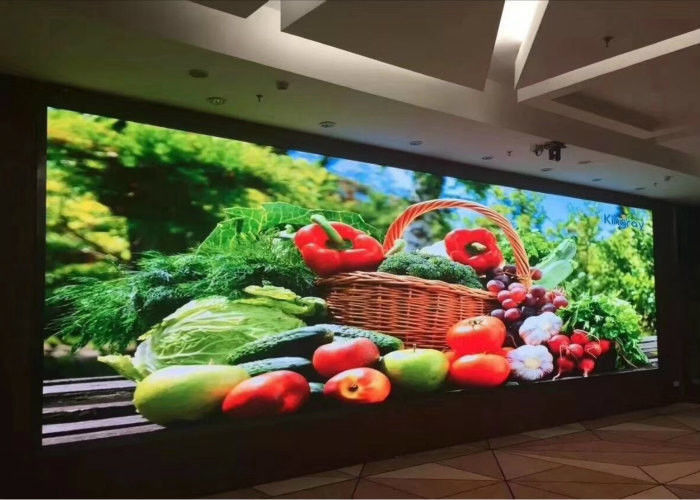

High Brightness LED Display Panels 2.5mm Pixel Pitch For Commercial Advertising



 >> Features



 1. Die-casting Aluminum cabinet design makes the high precision connection;

 2. Pitch 2.5mm LED Video Wall with 4layers PCB Board to ensure the lifespan and Display effect

 3. Front access solution. no worry that no space between the led screen and the wall.

 4. Fast lock and lightweight to reduce labour and assemble& dismantle big screen quickly



Itemparameter
Pixel Pitch2.5mm
Pixel Density160,000dos/sqm
LED PackageFull color SMD2121
Module Size240*240mm
Module Resolution96*96dot
Cabinet Size460*480mm
Cabinet Resolution192*192dot
Cabinet MaterialsDie-casting Aliuminum
Cabinet Wegiht6.5kg/pc
Brightness>950nits
Refresh Rate>4000hz
Viewing Angle140°/140°
Max Power Consumption600W/sqm
Ave. Power Consumptio180W/sqm
Life Span>100,000 Hours
Operating Humidity10% - 95%
CertificateCE,ROHS,FCC,ACMA
Input SourceAll Format (AVI, MPEG,VOB, RM, etc)



 >> Description



 1. The whole screen can be seamless Mosaic,flatness,there will be no gap

 2. High frequency refreshes,each color 625,000 grayscale modulation,making the image more delicate,about the point-by-point correction technology system,easy to operate.

 3. Control power supply constant power chip,double capacitance high power.stable heat dissipation,long life,more urable.

 4. Use national standard all copper power supply wire,anti-oxidation.anti-aging,waterproof,flame retardant,can be used for a long time without damage .

 5. Using 6-pin copper bracket lamp beads,the current uniform brightness.long useful life,beautiful color without shad.

 6. Use angle extension technology to ensure the image is not distorted and the color is not distorted.



 >> Pre-sale service
 1. Reply enquiries in 24 hours.
 2. Market research and forecast for the customer.
 3. Provide unique and professional solutions based on customer's requirement.
 4. Data-sheet and samples offer are available.
 5. Other services, such as special packing design, factory visiting and so on.
 >> After-sale service
 1. Lifetime free maintenance and upgrade.
 2. Complaint responds period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
 3. Customer satisfaction tracking report.
 4. Free technician training.
