Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-LED3D
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month

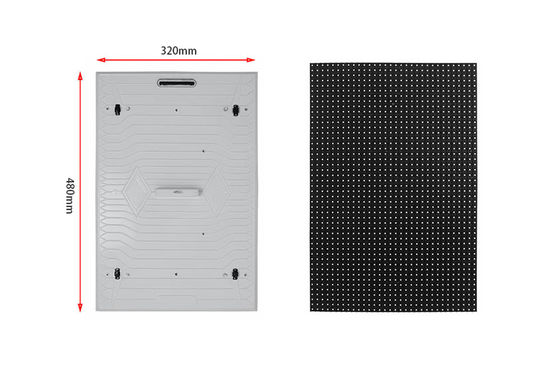

Module size: |
480mm * 320mm |
Refresh: |
3840Hz |
Brightness: |
12000≥5500nit |
Pixel Pitch: |
5.7/10mm |
Wave Angle (H): |
120°(H)/90°(V) |
Pixel composing: |
1R1G1B |
Module size: |
480mm * 320mm |
Refresh: |
3840Hz |
Brightness: |
12000≥5500nit |
Pixel Pitch: |
5.7/10mm |
Wave Angle (H): |
120°(H)/90°(V) |
Pixel composing: |
1R1G1B |

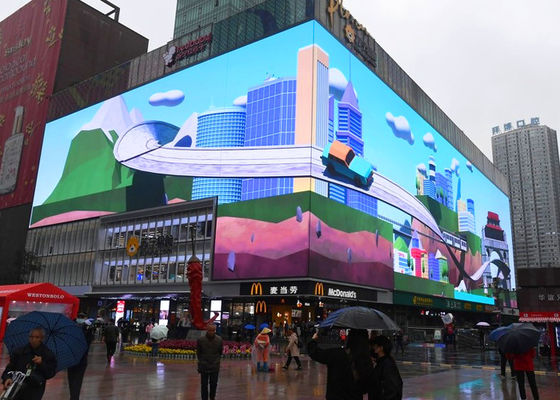

Naked-eye 3D LED Display Outdoor Full Color Led Display P5.7 Led Wall Front Open Big Outdoor Led Screen
>> Detailed Product Description
P5.7/P10 Full Color Outdoor LED Display Board Low Power Waterproof
>> Specification
| Pixel Pitch | 8mm |
| Pixel composing | 1R1G1B |
| Density |
30625 |

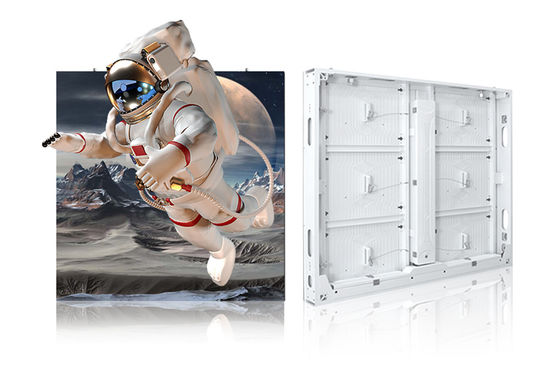

| Cabinet size | 960*960*92mm |
| Module size | 256mm * 128mm |
>> P7.5/P10 SMD led display board parameters
| Configuration scheme | Standard preparation | Common Yin high configuration | Extreme energy saving | Extremely bright | ||||
| Pixel spacing | 5.7mm | 10mm | 5.7mm | 10mm | 5.7mm | 10mm | 5.7mm | 10mm |
| Lamp type | SMD2727 | SMD3535 | SMD2727 | SMD3535 | SMD2727 | SMD3535 | SMD2727 | SMD3535 |
| Number of scans | 1/7s | 1/2s | 1/7s | 1/2s | 1/7s | 1/2s | 1/7s | 1/2s |
| Pixel point / m² | 30625 | 10000 | 30625 | 10000 | 30625 | 10000 | 1/7s | 1/2s |
| Maximum power / m² | 700W | 500w | 280w | 550W | ||||
| Average power / m2 | 235W | 168w | 90w | 185W | ||||
| Brightness / m² | ≥5500cd | ≥6000cd | ≥5500cd | ≥7500cd | ≥8000cd | 12000cd | ||
| Box size: | 960x960x92mm | |||||||
| visual angle | 140°H/120°V | 80°H/70°V | ||||||
| Refresh | 3840Hz | |||||||
| Rate gray scale | 65536 | |||||||
| Module protection level | IP67 | |||||||
| maintain | Front and rear maintenance | |||||||
>> Features of P5.7/P10 outdoor led display board
– High brightness and super energy saving
– ultra-light and ultra-thin
– Simple structure, full wireless, hard link, front and rear maintenance
– Good heat dissipation, no need for air conditioning
– Modular aluminum bottom shell, flame retardant and fireproof, waterproof grade IP68
