Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-LEDSP
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
2/2.5mm |
Display Function: |
Video |
Brightness: |
1000> 800 Nits |
Display Mode: |
Synchronous / Asynchronous |
Refresh Rate: |
1920-3840Hz |
Tube Chip Color: |
Full Color |
Pixels: |
2/2.5mm |
Display Function: |
Video |
Brightness: |
1000> 800 Nits |
Display Mode: |
Synchronous / Asynchronous |
Refresh Rate: |
1920-3840Hz |

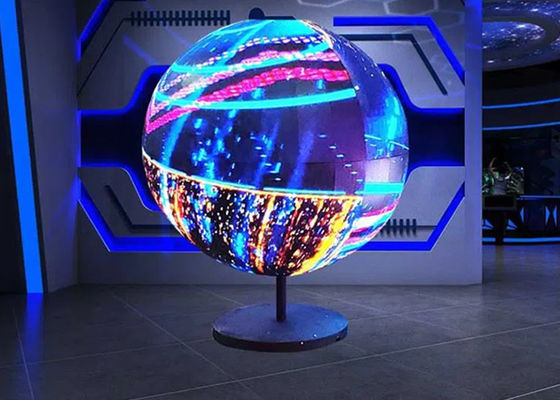

P2 P2.5 Flexible LED Indoor Display Billboard LED Sphere Ball Screen Display
>> Main features

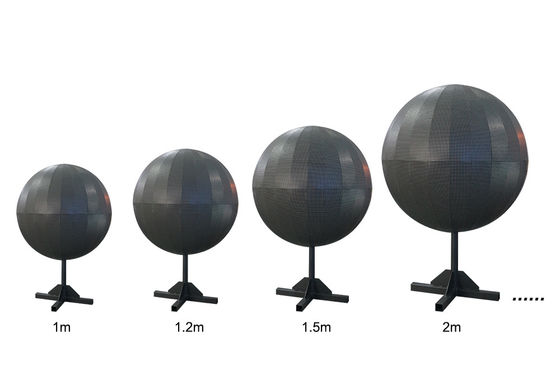

| Diameter dimension | 2.5m | 2m | 1.5m | 1.2m | 1m |
| Pixel Pitch | P2/P2.5 | ||||
| LED Type | SMD1515/SMD2121 | ||||
| Scanning | 24s/27s | ||||
| Module 1 | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
| Module 2 | 25 / 25 = 50 PCS | 23/23=46PCS | 80PCS | 25PCS | 25/25=50PCS |
| Module 3 | 50 / 50 = 100PCS | 46/46=92PCS | 80PCS | 25PCS | 25/25=50PCS |
| Module 4 | 50 / 50 = 100 PCS | 46/46=92PCS | 80PCS | 25PCS | |
| Module 5 | 50 / 50 = 100PCS | 46/46=92PCS | 850cd | 25PCS | |
| Module 6 | 50 / 50 = 100PCS | ||||
| Brightness | 1000cd | 800cd | 850cd | 850cd | 850cd |
| weight | 550kg | 400kg | 400kg | 100kg | 80kg |
| Gray scale | 14bit | ||||
| AC input voltage | 220 | ||||
| Power input frequency | 50/60HZ | ||||
| Brightness adjustment | Manual / automatic | ||||
| Refresh rate | 3840 | 1920 | 1920 | 3000 | 1920 |
| Display mode | Synchronous / asynchronous | ||||
| Color temperature | 300k-9500k | ||||
| working temperature | -20°C~60°C | ||||
| Operating humidity | 10％~90％ | ||||
| service life | ≥100000 hours | ||||
| resolving power | 3500*1900 | 2408*1204 | 1760*670 | 1400*720 | 1200*654 |
>> Advantages

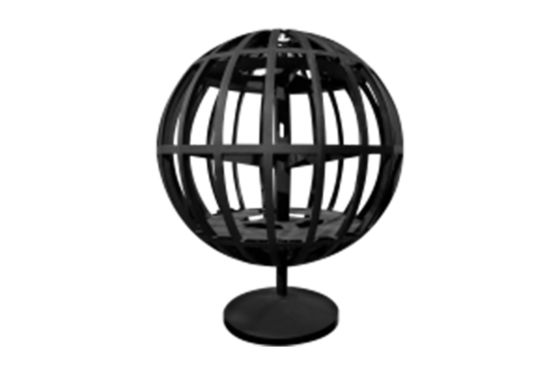

1.Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
2.Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
4.Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
5. High structure performance: esy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
