Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-LEDCY
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
1.56mm/1.875mm/2mm/2.5mm |
Display Function: |
Video |
Brightness: |
1200> 800 Nits |
Display Mode: |
Synchronous / Asynchronous |
Refresh Rate: |
1920-3840Hz |
Tube Chip Color: |
Full Color |
Pixels: |
1.56mm/1.875mm/2mm/2.5mm |
Display Function: |
Video |
Brightness: |
1200> 800 Nits |
Display Mode: |
Synchronous / Asynchronous |
Refresh Rate: |
1920-3840Hz |

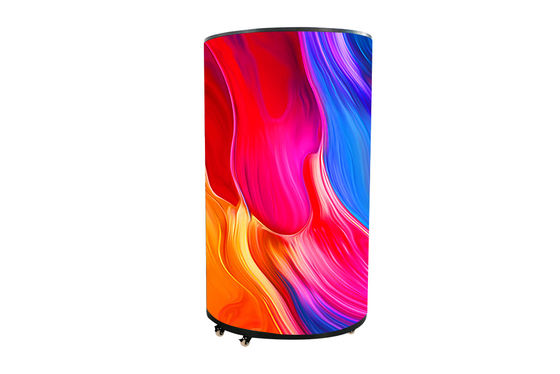

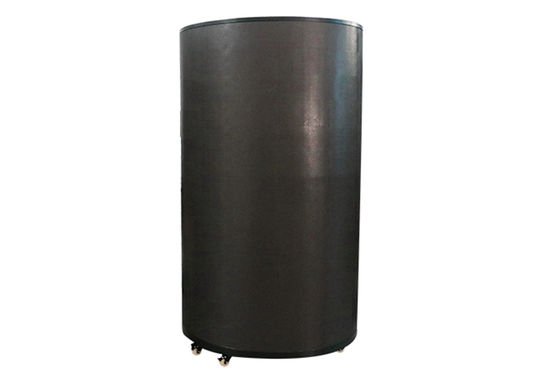

High quality full color P1.56 P1.785 P2 P2.5 Flexible Led Video Display cylinder flexible led screen
>> Main features
– Soft silicone back shell High contrast ratio
– Ultra-light and ultra-thin
– 160° Wide Viewing angle
– Remain picture clearly & seamless, no delay
– Simple & fast to maintain
| Pixel pitch | P1.56 | P1.875 | P2 | P2.5 |
| Module size/mm | 240*120 | 240*120 | 240*120 | 240*120 |
| Weight | 190g | 170g | 170g | 170g |
| Color | 1R1B1G | 1R1B1G | 1R1B1G | 1R1B1G |
| Modulator tube | SMD1010 | SMD1010 | SMD1010 | SMD1515 |
| Resolution | 409600 | 284444 | 250000 | 160000 |
| View angle | 140° | 140° | 140° | 140° |
| Brightness cd/m² | 800-1200 | 800-1200 | 800-1200 | 800-1200 |
| Best view distance/m | >1.56 | >1.875 | >2 | >2.5 |
| Frame rate | ≥60/sec | ≥60/sec | ≥60/sec | ≥60/sec |
| Protective Grade | IP31 | IP31 | IP31 | IP31 |
| Drive mode | Dynamic scan | Dynamic scan | Dynamic scan | Dynamic scan |
| Refresh rate/Hz | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode/s | 1/48 | 1/32 | 1/32 | 1/32 |
| Maximum power w/m² | 700 | 700 | 700 | 700 |
| Average power w/m² | 350 | 350 | 350 | 350 |
| Working temperature | -15℃~+40℃ | -15℃~+40℃ | -15℃~+40℃ | -15℃~+40℃ |
| Storage Humidity | -25%~+70% | -25%~+70% | -25%~+70% | -25%~+70% |
| Controlling system | Synchronous | Synchronous | Synchronous | Synchronous |
>> Advantages
1. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.

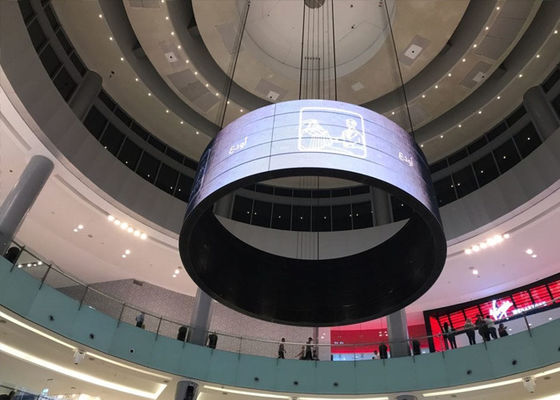

2. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
4. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
5. High structure performance: esy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
