High Brightness Indoor Outdoor SMD P2.84-20 Full Color Video Wall Glass LED Mesh Transparent LED Display Screen

High Brightness Indoor Outdoor SMD P2.84-20 Full Color Video Wall Glass LED Mesh Transparent LED Display Screen

  • Dot Pitch
    2.84-20mm
  • Drive Mode
    Constant Current Drive
  • Maximum Power
    240w/m²
  • Cabinet Dimnsion
    1000*500
  • Display Function
    Video
  • Refresh Rate
    1920*3840HZ
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-LEDTE
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

High Brightness Indoor Outdoor SMD P2.84-20 Full Color Video Wall Glass LED Mesh Transparent LED Display Screen

High Brightness Indoor Outdoor SMD P2.84-20 Full Color Video Wall Glass LED Mesh Transparent LED Display Screen



 >> Specification



 1). For indoor stage display, super bring, supports any format of video



 2). Easy and simple installation interface and user friendly software to ensure the easy operation the LED display system.

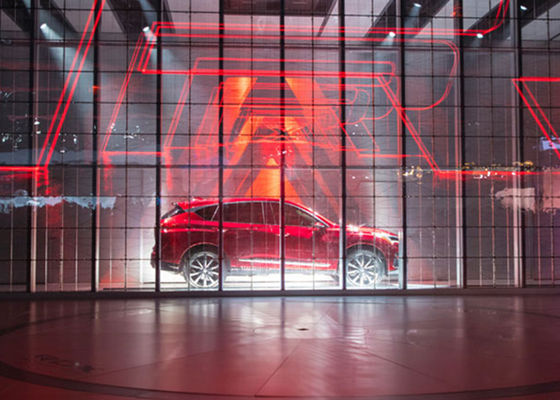

 3). Our LED displays are widely used in commercial advertising, indoor led video wall, entertainment industry, stage events, concerts, financial industry, communications, power sector, traffic, stadium, plaza, school, airport et., for advertising and displaying messages.



 >> Product Features



 1). Adopting the brightness and hue adjustment technologies, eliminate the bright and dark patches and plagues, realized the color and brightness uniform of the whole display; Taking the HDTV standards as color correction reference, restore nature vivid colors for the whole display.



 2). Meticulos desigh of modules reduce the plane difference to less than 0.2 mm, effectively eliminate the mosaic phenomenon and ensure the excellent flatness and contrast of the whole display.



 3). Modular ultra light cabinet with fast lock and dowel pin on it make it quite easy for installation, disassemble and maintain. It can realized lifting or piling installation on site.



 4). Cabinet made of good quality pressure-casting aluminum can bear load strength and reduce deformation; it's suitable for large enterainment.

Pixel Pitch P2.84 P3.91 P7.81 P10.42 P15.625 P20
Pixel Density(m²) 56320 32768 16384 9216 4096 2304
Permeability 0.56 0.7 0.56 0.65 0.75 0.85
Refresh Rate(Hz) ≥3851 ≥3840 ≥1920 ≥1920 ≥1920 ≥1920

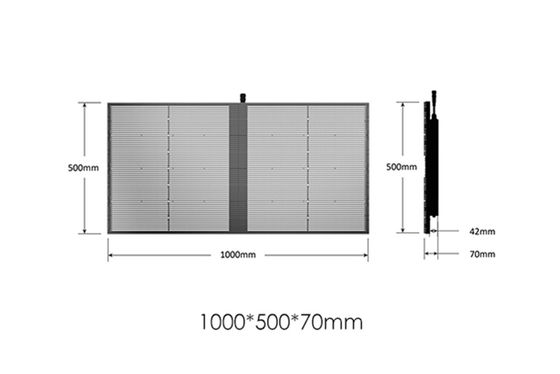

Cabinet Size(mm) 1000*500
Cabinet Refresh Rate 352*80 256*64 128*64 96*48 64*32 48*24
LED Light 1415 RGB 1921 RGB 1921 RGB 1921 RGB 3535 RGB 3535 RGB
Brightness(nits)/㎡ ≥2700 ≥4500 ≥4000 ≥4000 ≥4000 ≥4000
Max Consumption(W/M) 800
Ave Consumption(W/M) 240 240 240 200 180 150
Grey Scale(Bit) 27 16 16 16 16 16
Degree protection IP41 IP30 IP30 IP30 IP30 IP30
Weight PC/KG 5 5 6 6 6 6
Work Environment ﹣10℃~51℃
Display Interface DIV/HDMI
Installation Mode Fixed installation
LED Life(h) 210000 100000 100000 100000 100000 100000


 >> Advantage

1. Big panels are quite easy for assemble. (Save time for assemble and dismantle.)

2. Easy for carrying (Super slim,75mm in depth and light weight. 20kgs/m² )
3. Curved screen diversify your fantastic events design. (each panel has 10 degree angle, Optional)
4. Make it easy for maintenance and replace the modules (Simple rear design make the module easily to be take out)
