Fashion Show Transparent LED Display P10 Full Color LED Poster Portable IP65

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-ITP1000

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

transparent led screen

,

clear led display

Resolution of Module:
320*160
Protection Leve:
IP65
Scan Mode:
1/8 Scan
Brightness:
1500-1800
Pixel Configuration:
SMD3528 1R1G1B
Usage:
Indoor
Resolution of Module:
320*160
Protection Leve:
IP65
Scan Mode:
1/8 Scan
Brightness:
1500-1800
Pixel Configuration:
SMD3528 1R1G1B
Usage:
Indoor
Product Description

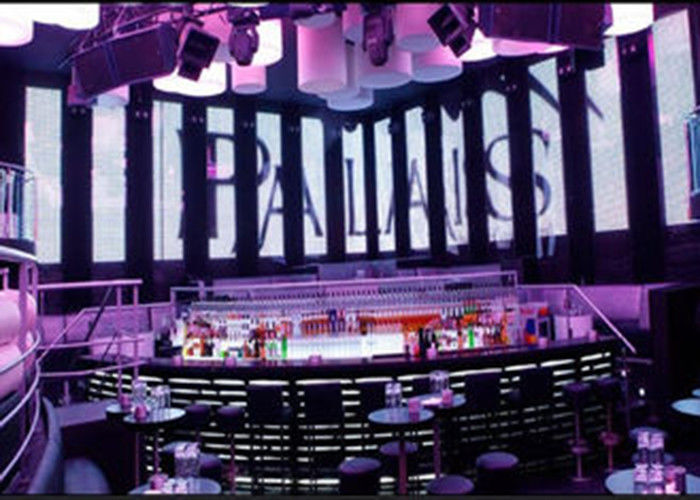

Fashion Show Transparent LED Display P10 Full Color LED Poster Portable IP65



 Our Transparent LED Screen Display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.



 The Transparent LED Screen Display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.



 1. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.



 2. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness



 3. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C



>> Specification



P10 1/8 Scan Full Color Module of Indoor
Item Unit Parameter
Pixel Pitch mm 10.00
Pixel Density dots/sqm 10,000
Resolution of Module dots 32*16
Module Size mm 320*160
HUB   75
Led Package SMD3528
Pixel Configuration SMD3528 1R1G1B
Chip Brand of LEDs Silan/Epistar/Cree/Nichia
Module Weight kgs/pc 0.38KG
Brightness (White Balance) nits(cd/sq.m) 1500-1800
Red Wavelength nm 620-625
Green Wavelength nm 520-525
Blue Wavelength nm 470-475
Scan Mode 1/8 Scan
View Distance M 3--50
Best View Distance M 6--30
Viewing Angle-Horizontal deg. 120
Viewing Angle-Vertical deg. 120
Module Maximum Power W 25
Max. Power Consumption W/sq.m 500
Avg. Power Consumption W/sq.m 150
Working Voltage 5V 40A
Power Supply AC 110/220V
Waterproof Grade IP24
Refresh Rate Hz/S 3,000
Frame Rate Hz/S ≥ 60
Gray Scale 4096 grades gray
Display Color 256*256*256
Display Function Text,news,advertising,flash,animation
Input Signal RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Defective Dot Rate   <0.0001
Life Span hours 100,000
MTBF hours >10,000
Storage Temperature -35 -- +80
Working Temperature -20 -- +60
Working Humidity 10-90%RH
Control System Synchronization or Asynchronization
Quality Certificate ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty 1 Years
Working Environment Indoor
Other Fertures LED&ICs in Departed PCB



>> Advantage


 1. The first level LED chip from Taiwan Epistar.

 2. With pure golden wire connection in LED.

 3. Grand A row material for module frame and mask.

 4. 4 layers PCB and copper plating thickness > 30mil.

 5. Ag alloy solder paster to ensure good soldering on PCB.

 6. Stainless steel screws when assembly.

 7.easy-assembly cabinet.

 8. WIFI and 3G control are available, cell phone control is ok too.

 9. Three years warranty.
