Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ITP1001
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Pixel Pitch: |
10mm |
Brightness: |
≥1000nits |
Cabinet Wegiht: |
9kg/pc |
Viewing Angle: |
140°/60° |
Working Temperature: |
-20℃ - +60℃ |
Viewing Distance: |
10-300m |
Pixel Pitch: |
10mm |
Brightness: |
≥1000nits |
Cabinet Wegiht: |
9kg/pc |
Viewing Angle: |
140°/60° |
Working Temperature: |
-20℃ - +60℃ |
Viewing Distance: |
10-300m |

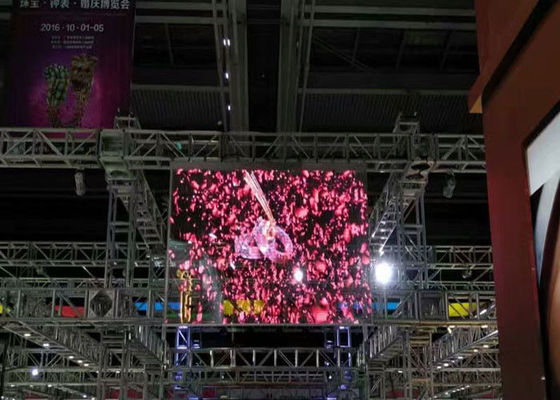

Indoor P10 Transparent LED Display Glass Video Wall Lightweight 9216 Dos/Sqm
>> Features
1. High transparency, up to 72%.
2 . With the front and back wear-resistant PC board protection, no discoloration, no deformation, endure high temperature and antiflaming.
3 .Light weight ,about 9kg/m².
4 .The display is clean and clear, the screen picture is good and beautiful.
5 .Brightness automatic adjustment, with the indoor brightness automatically adjusted.
6 .Can be fully achieved the front maintenance, installation and disassembly.
| Item | specification |
| Pixel Pitch | 10mm |
| Pixel Density | 9,216dos/sqm |
| LED Package | SMD3528 |
| Cabinet Size | 1000*500mm |
| cabinet Resolution | 96*96dot |
| Cabinet Materials | Aluminum |
| Cabinet Wegiht | 9kg/pc |
| Brightness | >1000nits |
| Driving Mode | 1/16scan |
| Refresh Rate | >1920hz |
| Grey Level | 256levels |
| Viewing Angle | 1410°/60° |
| Viewing Distance | 10-300m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 300W/sqm |
| Ave. Power Consumptio | 140W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
>> Description
The transparent led display as a new glaring star in led display area with comprehensive advantages.
Super slim and less weight without any steel structure frame. You can install it like a window-shades.
It is a outstanding product which well beautify moden glass building, also enlarge the building function for adverts.
It will be the trend in the next 5 years.
1. Usage: Indoor, hotel, shopping mall, auto shops Glass, Transparent and High brightness, Most stand behind of Glass wall and face outside.
2. Installation: Wall-mounted, standing on the floor.
3. Control: Controlled by your computer ,own equipment.; or adopt wireless controller
4. Connection: Connected to your computer or own equipment.
5. Maintenance: Enough Free spare parts for replacement,
