High Brightness Outdoor Transparent LED Display Screen 500mm X 1000mm Cabinet

High Brightness Outdoor Transparent LED Display Screen 500mm X 1000mm Cabinet

    • High Brightness Outdoor Transparent LED Display Screen  500mm X 1000mm Cabinet
    • High Brightness Outdoor Transparent LED Display Screen  500mm X 1000mm Cabinet
  • High Brightness Outdoor Transparent LED Display Screen  500mm X 1000mm Cabinet

    Product Details:

    Place of Origin: Shenzhen ,China
    Brand Name: DDW
    Certification: CE/ROHS/FCC/UL/ISO/3C
    Model Number: DDW-OTP1000

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Plywood or Flight Case
    Delivery Time: 7-20 days
    Payment Terms: Bank T/T transfer, Western Union
    Supply Ability: 6000sqm/month
    Contact Now
    Detailed Product Description
    Cabinet Size: 1000*500mm Brightness: >5000nits
    Driving Mode: 1/2scan Refresh Rate: >1920hz
    Working Temperature: -20℃ - +60℃ Grey Level: 256levels
    High Light:

    transparent led screen

    ,

    transparent led video wall


    High Brightness Outdoor Transparent LED Display Screen 500mm X 1000mm Cabinet



     >> Features

     1. P10 pixel pitch and design enable transparency as high as 78%;
     2. High quality LED lamp, power supply, and PCB materials to ensure the lifespan and stable
     3. High Brightness to ensure the LED display visibly if it is behind a glass wall and facing outside;
     4. Light weight, available for the different installation environment, hanging, standing



    Item argument
    Pixel Pitch 10mm
    Pixel Density 9,216dos/sqm
    LED Package SMD3528
    Cabinet Size 1000*500mm
    cabinet Resolution 96*96dot
    Cabinet Materials Aluminum
    Cabinet Wegiht 9kg/pc
    Brightness >5000nits
    Driving Mode 1/2scan
    Refresh Rate >1920hz
    Grey Level 256levels
    Viewing Angle 140°/140°
    Viewing Distance 10-300m
    Power Input AC110V - 220V ±15%, 50HZ
    Max Power Consumption 300W/sqm
    Ave. Power Consumptio 140W/sqm
    Working Temperature -20℃ - +60℃
    Life Span >100,000 Hours



     >> Description

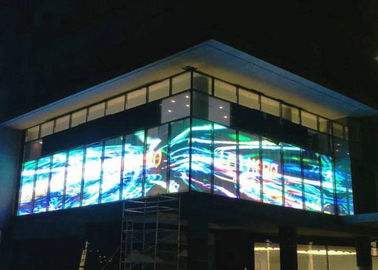

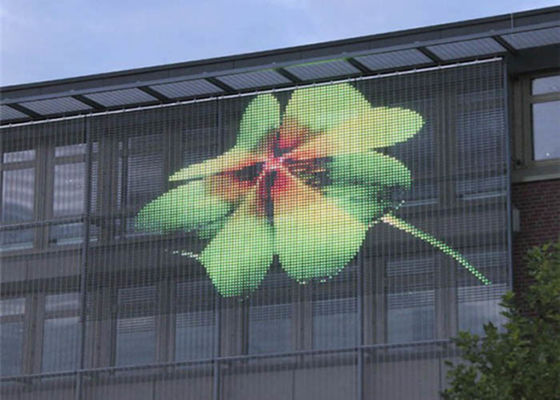

     1. Usage: Indoor, hotel, shopping mall, 4s auto shop Glass,

     2. Installation: Wall-mounted, standing on the floor.

     3. Control: Controlled by your computer, own equipment.; or adopt wireless controller

     4. Connection: Connected to your computer or own equipment.

     5. Maintenance: Enough Free spare parts for replacement,

    High Brightness Outdoor Transparent LED Display Screen  500mm X 1000mm Cabinet 0
