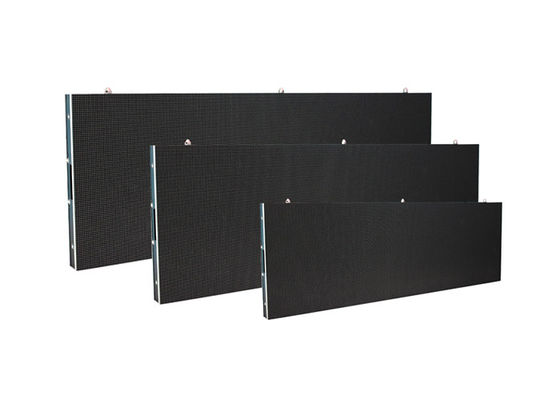

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display

8K 4K SMD HD P1.56 P1.95 P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display

  • Pixel Pitch
    P1.56/P1.95/P2.5/P2.604/P2.976/P3.91
  • LED Type
    /SMD1212/SMD1515/SMD2121
  • Brightness
    500-1200cd/m²
  • Refresh Rate
    3840Hz
  • Cabinet Size
    500x250/750x250/1000x250mm
  • Module Size
    250x250mm
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-LEDFU
  • Minimum Order Quantity
    1~10
  • Packaging Details
    Quality carton with full wood box packing/Flight case
  • Delivery Time
    7-20 days

8K 4K SMD HD P1.56 P1.95 P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display

Indoor LED Screen HD Series


High-definition indoor LED display to deliver exceptional viewing experience. Reach your target audience effectively with full HD, 2K or 4K Ultra HD LED screen.

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 0

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 1

Perfect Cabinet Design

cabinet fxied slot, fast lock,magnet adsorption module, module installation knob, Power& signal connector, detachable power
boxing, and more

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 2

Optional cabinet dimension

500x250x53mm/750x250x53mm/1000x250x53mm

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 3

250x250mm Size Modules

P1.95/P2.5/P2.976/3.91

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 4

Hot-swapping


Hard connection
No cables

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 5

High refresh IC

PWM constant current output  Anti-interference  Control the brightness precisely

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 6

Double-sided display

can be synchronous or asynchronous to meet different needs

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 7

Super wide viewing angle

can be synchronous or asynchronous to meet different needs,

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 88K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 9

8K 4K SMD HD P1.56 P1.95  P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display 10





LED type SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2121
Physical density(dots/sq.m) 409600 262144 160000 147456 112896 65536
Module resolution 160X160 128X128 100X100 96X96 84X84 64X64
Module dimension(mm) 250X250 250X250 250X250 250X250 250X250 250X250
Module quantity(W×H) 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1
Panel resolution 640X160 512X128 400X100 384X96 336X84 256X64
Maintenance Front access service Front access service Front access service Front access service Front access service Front access service
Cabinet material Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Pixel calibration Yes Yes Yes Yes Yes Yes
Brightness(cd/m²) 500 700 800 800 800-1000 1000-1200
Color temperature(K) 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional
Grey scale(bit) 14/16 Optional 14/16 Optional 14/16 Optional 14/16 Optional 14/16 Optional 14/16 Optional
Viewing angle(V/H) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
Brightness/Color uniformity ≥97% ≥97% ≥97% ≥97% ≥97% ≥97%
contrast 6000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
Frequency rate 50/60 50/60 50/60 50/60 50/60 50/60
Drive mode 1/40Scan 1/32 Scan 1/25 Scan 1/32 Scan 1/28 Scan 1/16 Scan
Max power consumption(w/m²) 480 600 600 600 600 800
Avg. power consumption(w/m²) 100-200 100-200 100-200 100-200 100-200 100-200
Electric power AC90-264V AC90-264V AC90-264V AC90-264V AC90-264V AC90-264V

47-63Hz 47-63Hz 47-63Hz 47-63Hz 47-63Hz 47-63Hz
