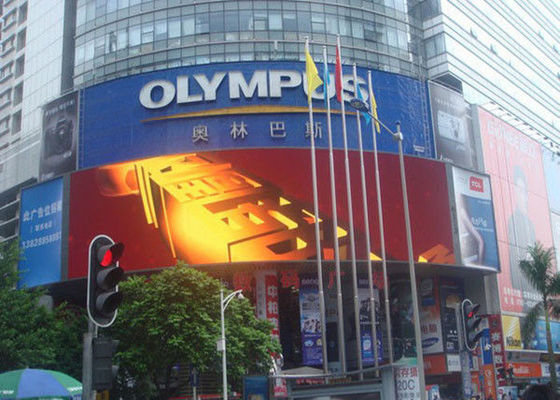

12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535

12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535

  • 12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535
  • 12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535
12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535
Product Details:
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFCP1251
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Contact Now
Detailed Product Description
Pixel Configure: 1R1G1B Pixel/SQM: 6400Pixel/m²
Module Resolution: 16Pixel * 32Pixel Cabinet Weight: 6kg
Cabinet Assembly: Latch Display Function: Video
High Light:

outdoor advertising led display

,

outdoor fixed led display

12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535



 Our p12.5 outdoor led display is extremely high definition, wide viewing angle, energy saving, quick heat dispelling ,and vivid colors LED display.



>> Specification

 1). For indoor stage display, super bring, supports any format of video



 2). Easy and simple installation interface and user friendly software to ensure the easy operation the LED display system.



 3). Our LED displays are widely used in commercial advertising, indoor led video wall, entertainment industry, stage events, concerts, financial industry, communications, power sector, traffic, stadium, plaza, school, airport et., for advertising and displaying messages.


 >> Product Features



 1). Adopting the brightness and hue adjustment technologies, eliminate the bright and dark patches and plagues, realized the color and brightness uniform of the whole display; Taking the HDTV standards as color correction reference, restore nature vivid colors for the whole display.



 2). Meticulos desigh of modules reduce the plane difference to less than 0.2 mm, effectively eliminate the mosaic phenomenon and ensure the excellent flatness and contrast of the whole display.



 3). Modular ultra light cabinet with fast lock and dowel pin on it make it quite easy for installation, disassemble and maintain. It can realized lifting or piling installation on site.



 4). Cabinet made of good quality pressure-casting aluminum can bear load strength and reduce deformation; it's suitable for large enterainment.



configure Specification Parameter
Pixel Dot Pitch 12.5mm
Pixel Configure 1R1G1B
Pixel/SQM 6400Pixel/m²
LED Lamp LED TYPE SMD 3528
Chip Brand EPISTAR
Wavelength & Brightness

Red:620-622.5nm;>300mcdGreen:520-522.5nm;>600mcd

Blue:465-467.5nm;>110mcd

Module Module Resolution 16Pixel * 32Pixel
Drive Mode Constant Current Drive
Scanning Method 1/8Scanning
Module Dimension 200mm(Width)x400mm(Height)
Drive IC MBI5024(Or other Similar IC)
LED & Drive Composition Light-Drive Combo
Refresh Rate >800HZ
Cabinet Cabinet Thickness 35mm
Cabinet Construction Ultra-Thin Cabinet
Cabinet Weight 6kg
Cabinet Assembly Latch
Cabinet Color(Front/Back) Black
Connecting Cable Waterproof Connecting Cable
Maintenance Mode Back Maintenance
Cabinet Material Aluminium
Cabinet Dimension 400X800X35mm
Power Supply China Power Supply
LED Screen Viewing Angle Horizontal : 120 ° Vertical: 120 °
Brightness >700cd/m²
Best Viewing Distance 12~60m
LED Life 100,000Hours
Maximum Power 300w/m²
Average Power 110w/m²
Input Voltage 220V±10% Or 110V±10%
Operation Environment Temperature: —20°C~60°C; Humidity: 10%~95%
Protection Grade IP 30



 1. Big panels are quite easy for assemble. (Save time for assemble and dismantle.)


 2. Easy for carrying (Super slim,75mm in depth and light weight. 20kgs/m² )

 3. Curved screen diversify your fantastic events design. (each panel has 10 degree angle, Optional)

 4. Make it easy for maintenance and replace the modules (Simple rear design make the module easily to be take out)

12MM Pixel Pitch Outdoor Advertising LED Display Screen EPISTAR Chip SMD3535 0
