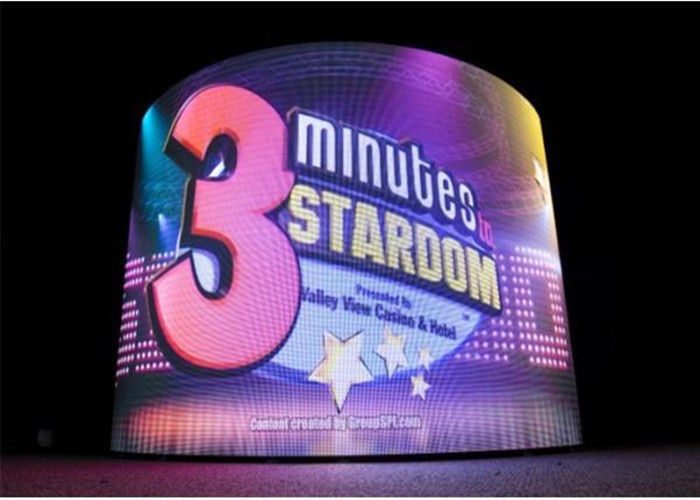

Pitch 6.25 Mm Indoor Rental LED Display System Full Color Slim Light Weight
indoor Rental LED Display is especially suitable for rental use. It's very lightweight and thin. Easy to assemble and dis-assemble. One person is able to hold a cabinet with one hand easily.
>> Main features of indoor Rental LED Display
1. Light weight
2. High resolution images
3. Competitive prices, reliable quality;
4. High contrast ratio which ensures vivid images;
5. Low power consumption, environmentally friendly;
6. Customizable for various sizes;
7. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;
8. Excellent after-sales service, warranty of one years;
9. CE, ROHS, ISO certificate
>> Product Description
| Item | Specification | |
| Pixel | Physical pixel pitch: 6 mm | |
| Pixel configuration: 1R1PG1PB | ||
| Module | Module resolution: 48 x 48pixel | Module size: 288 x 288mm |
| Cabinet | Cabinet resolution:96x96pixel | Cabinet size:576 x 576x60mm |
| Cabinet :9216pixels | Module Qty:4pcs=2(W)x2(H) | |
| Material: Aluminum | Weight: 12Kg | |
| Average power: 120W | Max power consumption: 220W | |
|
Electricity parameter |
Brightness: 900 - 1500 nits | |
| Brightness adjusted: 100 grade by software, or by Auto-optic induced | ||
| Color processing: 16bit | ||
| Display color: 280 trillion | ||
| Color temperature(k): 5000 — 9500 (choice by user) | ||
| Physical density: 27777 pixels/sqm | ||
| Whole display flatness: ≤ 1mm juncture | ||
| Best view distance: ≥ 5m | ||
| Best view angle: Horizontal ±80°, Vertical ±80° | ||
|
Storage temperature: -35℃ ~ +85℃ Working temperature: -20℃ ~ +50℃ |
||
| Driving method: Constant driving current Scan: 1/12 | ||
| Refresh frequency: ≥ 1200Hz | ||
| Frame rate: ≥ 60Hz | ||
| Humidity(RH): ≤ 90~95% | ||
| Protection grade: IP64 | ||
| Working Voltage: DC 5V | ||
| Power supply: AC 110 / 220V, 50/60Hz | ||
| Average power consumption:300w/sqm | ||
| Max power consumption: 600w/sqm | ||
| MTBF: 10, 000 hours | ||
| Screen lifetime: 100, 000 hours | ||
|
Control system |
Signal interface: DVI | |
| Communication distance: Internet cable: ≤120m Fiber cable: 1000m | ||
| Signal transfer mode: Pixels to pixels display synchronized | ||
>> Advantage
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.
3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
Our products are sold all over the world, you can rest assured.
