Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ORTP1000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Scanning Rate: |
1/8 Dynamic Scanning |
Brightness: |
≥5000cd/m2 |
Pixel configuration: |
1R1PG1PB |
Pixel Pitch: |
10mm |
Weight: |
0.2Kg |
Viewing Angle: |
120-140° |
Scanning Rate: |
1/8 Dynamic Scanning |
Brightness: |
≥5000cd/m2 |
Pixel configuration: |
1R1PG1PB |
Pixel Pitch: |
10mm |
Weight: |
0.2Kg |
Viewing Angle: |
120-140° |

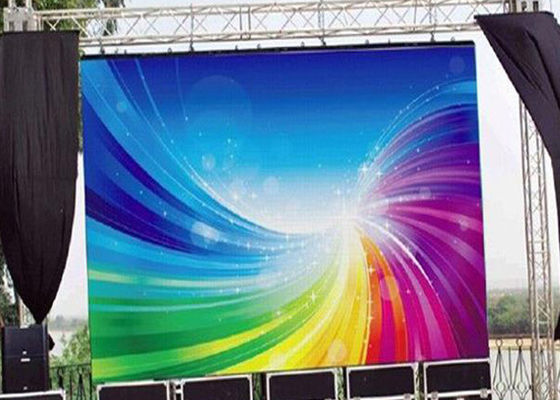

P10 Full Color Outdoor Rental LED Display Curtain Video Wall 1/8 Dynamic Scanning
>> Application
1. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
2. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
3. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
4. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
5. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
6. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
| Feature | |
| Type | P10 Outdoor Rental LED Dispaly |
| Application | Outdoor Rental LED Dispaly |
| LED Lamp | |
| Lamp | SMD3528 |
| Color blending | R:G:B=3:6:1 |
| R | Wave length: 620-625nm Brightness: 500-700mcd |
| G | Wave length: 520-525nm Brightness: 1000-1400mcd |
| B | Wave length: 470-475nm Brightness: 150-260mcd |
| LED Module | |
| Pixel pitch | 4/5/6mm |
| Pixel density | 62500-27777dot/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32*32 |
| Dimension | 128*128/160*160/192*192 |
| Weight | 0.2kg |
| LED Display | |
| Size | 93inch |
| Resolution | 288*512 |
| Contrast ration | 2000:1 |
| Viewing angle | 120-140° |
| Best viewing distance | 5-20m |
| Brightness | ≥5000cd/m2 |
| Color | 16.7M |
| Scanning rate | 1/8 dynamic scanning |
| Refresh rate | ≥1200Hz |
| Frame frequency | ≥60Hz |
| Grey scale | 16bit |
| Life span | 100,000h |
| Mean free error time | 7000h |
| Defect rate | <0.0001 |
| Control System | |
| Receiving card | Data receiving |
| Sending card | 1pcs for one side and 2pcs for two side screen |
| Functional card | Automatic brightness regulation |
| Network | 3G/WIFI |
| LED software |
Free charge
|
>> Our advantages
1. Front-access LED display, with easy front maintenance become popular in North America and Europe market.
2. Easy for installation, save labor cost and time.
3. With High brightness >7500 nits make the display content visible even under direct sunshine during daytime.
4. With light sensor for automatic brightness adjustment, make the brightness suitable for people’s eyes and save electricity cost, more environment Friendly.
5. Anti-UV mask, IP65 waterproof design, total outdoor use application.
6. Large viewing angle , full color, high color uniformity and clear image, bring you a vivid audio visual effect.
7. Epistar, Silan, Cree, Nichia, etc LED chip available.
