Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OCRP1201
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Tube Chip Color: |
Full Color |
Pixels: |
12mm |
Display Function: |
Video |
Brightness: |
>8000 Mcd |
Refresh Rate: |
480Hz |
Module Dimensions: |
192mm×192mm |
Tube Chip Color: |
Full Color |
Pixels: |
12mm |
Display Function: |
Video |
Brightness: |
>8000 Mcd |
Refresh Rate: |
480Hz |
Module Dimensions: |
192mm×192mm |

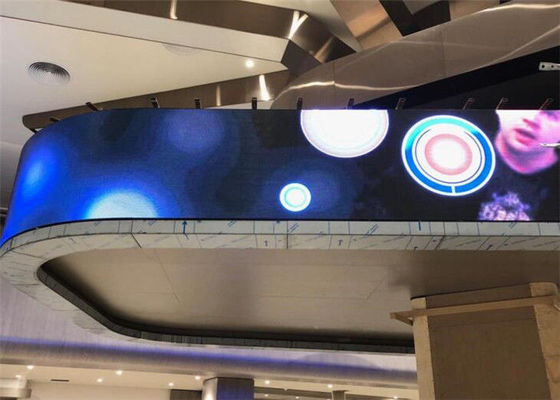

12mm Pixels Creative LED Screen 360 Degree LED Display For Square Advertising
1> Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
2> High flexibility: our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of out products in various bad circumstances outdoors.
3> Rich colors: with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
| 1 | LED encapsulation mode | φ4oval DIP |
| 2 | Horizontal axis | 120° |
| 3 | Vertical axis | 60° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 12mm |
| 6 | Scan method | 1/2 |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 16×16 pixels |
| 9 | Module dimensions |
192mm×192mm |
| 10 | Module type | incorporated lamp and drive |
| 11 | Module working voltage | +5V |
| 12 | Module average power | 5W |
| 13 | Module maximum power | 20W |
| 14 | Module shell material | PC |
| 15 | Module mask material | PC |
| unit cabinet | ||
| 1 | Module layout | 6×6 pieces |
| 2 | Cabinet resolution | 96×96pixels |
| 3 | Cabinet maximum power | 720W |
| 4 | Cabinet average power | 180W |
| 5 | Cabinet dimension | 1152mm×1152mm |
| 6 | Cabinet material | steel/aluminum alloy |
| 7 | Cabinet color | black/gray |
| 8 | Protection grade (front/back) | IP65/IP54 |
| Entire screen | ||
| 1 | Application environment | outdoor |
| 2 | Brightness | >8000 mcd |
| 3 | White balance coordinates | X=0.29,Y=0.31 |
| 4 | contrast | 64000:1 |
| 5 | Color temperature | 8000K |
| 6 | Pixel density(pixels/m2) | 6944 |
| 7 | Average consumption(W/m2) | 175 |
| 8 | Maximum consumption(W/m2) | 700 |
| 9 | Power source | AC220V/50HZ or AC110V/60HZ |
| 10 | Operating temperature | -20°C~ +50°C |
| 11 | Operating humidity | 10%~90% |
| 12 | Storage humidity | -30°C ~ +50°C |
| 13 | Refresh frame rate | 60Hz |
| 14 | Refresh rate | 480Hz |
| 15 | Viewing distance | 12-300m |
| 16 | grayscale/color | 16.7M |
| 17 | Brightness adjustment | 100 manual levels /100 auto levels |
| 18 | Control method | synchronous with the computer display |
| 19 | Data transfer range | Network c able:100m |
| 20 | Computer operating system | WINDOWS(98,2000,XP,Vista,7) |
>> Advantage
High reliability: the products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
Easy operation: the products adopt popular video playing software to facilitate system operations
