Home > products > 3D LED Display > High Contrast Led Flexible Curtain Screen 10mm Pixels 360 LED Display Full Color

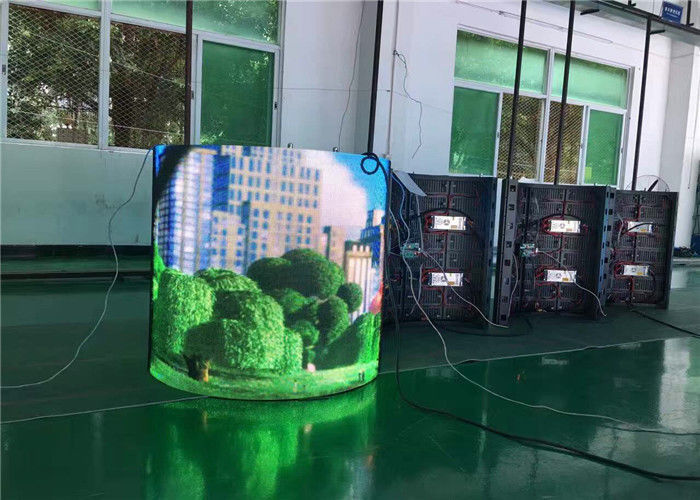

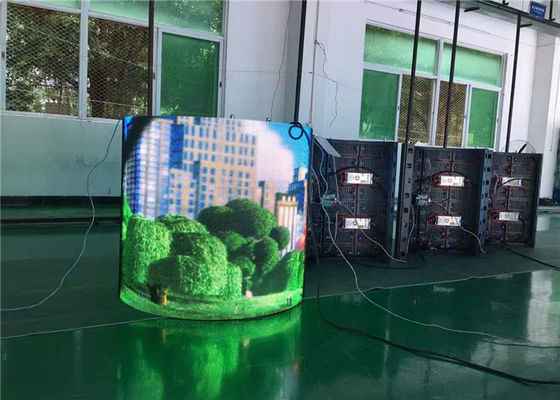

High Contrast Led Flexible Curtain Screen 10mm Pixels 360 LED Display Full Color

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-ICRP1001

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

creative led display

,

flexible led video wall

Tube Chip Color:
Full Color
Pixels:
10mm
Display Function:
Video
Brightness:
>7500cd/m²
LED Screen Weight:
38kg/m2
Cabinet Dimension:
640X640X79.5mm
Tube Chip Color:
Full Color
Pixels:
10mm
Display Function:
Video
Brightness:
>7500cd/m²
LED Screen Weight:
38kg/m2
Cabinet Dimension:
640X640X79.5mm
Product Description


High Contrast Led Flexible Curtain Screen 10mm Pixels 360 LED Display Full Color



 Our LED Solution has extensive experience in the field of electronic displays of giant LED screens, mobile LED advertising screens, for indoors and outdoors and for mass campaigns, or electronic displays LED's giants for football stadiums, LED electronic screens for roads, schools, orshops andmalls to highlight products and services.



 The large outdoor LED signs finally conquered the city environment and cut a comfortable place in the market for outdoor advertisement. Thousands of advertisements are transmitted in this way daily.



 >> Applications

 This kind of LED full color led video wall is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.

 ·--- Outdoor advertising, digital billboards, advertising in big companies

 ·--- Sports halls, fields, playgrounds.

 ·--- Airports, bus stations and railway passenger terminals.

 ·--- Facades of shopping malls, department stores, banks and car dealerships.

 ·--- Architecture and social projects, information systems in cities.

 ·--- Show-business, concerts, festivals, motor shows and other public events.



configure Specification Parameter
Pixel Dot Pitch 10mm
Pixel Configure 1R1G1B
Pixel/SQM 10000Pixel/m²
LED Lamp LED TYPE DIP346
Chip Brand EPISTAR
Wavelength & Brightness Red:620-622.5nm;>900mcdGreen:520-522.5nm;>1800mcd Blue:465-467.5nm;>300mcd
Module Module Resolution 16Pixel * 16Pixel
Drive Mode Constant Current Drive
Scanning Method 1/4Scanning
Module Dimension 160mm(Width)x160mm(Height)
Drive IC MBI5024(Or other Similar IC)
LED & Drive Composition Light-Drive Separation
Refresh Rate >2400HZ
Cabinet Cabinet Thickness 79.5mm
Cabinet Construction Normal Standard Cabinet
Cabinet Assembly Connecting Sheet
Cabinet Color(Front/Back) Anodized Blue
Aviation Plug wp20
Maintenance Mode Back Maintenance
Cabinet Material Aluminium
Cabinet Dimension 640X640X79.5mm
Power Supply China Power Supply
LED Screen Viewing Angle Horizontal : 110±10°Vertical: 60±10°
Brightness >7500cd/m²
Best Viewing Distance 10~50m
LED Life 100,000Hours
Maximum Power 750w/m²
Average Power 300w/m²
Input Voltage 220V±10% Or 110V±10%
Operation Environment Temperature: —20°C~60°C; Humidity: 10%~95%
Protection Grade IP 65
LED Screen Weight 38kg/m2



 1) Price Advantage: we have the best competitive price at the market; also have the same even better quality;

 2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps;
 3) Quality advantage: From material to finished product, from design to produce, we control all steps that are the guarantee of the quality and reliability;
 4) Service advantage: Better service at same situation, better cooperation at same service.
