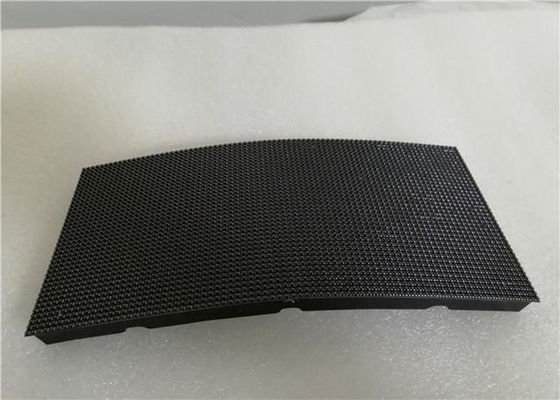

High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall

High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall

  • High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall
  • High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall
High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall
Product Details:
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ICRP4002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Contact Now
Detailed Product Description
Tube Chip Color: Full Color Pixels: 4mm
Display Function: Video Brightness: ≥1800cd/m2
Cabinet Weight: 50kg/m2 Module Size: 192 (Width) × 96 (Height)
High Light:

round led display

,

flexible led video wall


High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall



 P3 Flexible LED Screens is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fn is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Die-casting aluminum, secure and nice in constitution.

 >> Features
 1) No fans, mute when operation.
 2) Dustproof, IP43.
 3) High refresh rate and high gray depth.
 4) Completely black LED with high contrast.
 5) Standard cabinet size is 500mm x 500mm.
 6) Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the range.
 7) Exactly connected and easy to install and dismount.



Pixel Information Pixel Pitch 3mm
Pixel Density 111111 Pixels/m2
Pixel Configuration 1R1G1B
LED Wavelength Red: 615 nm - 635 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size(mm) 192 (Width) × 96 (Height)
Module Resolution 64(Width) × 32 (Height)
Cabinet Cabinet Size(mm) 576 (Width) ×576(Height)
Cabinet Resolution 192 (Width) × 192 (Height)
Total QYT Module Per Cabinet 3 (Width) ×6(Height)
Cabinet Weight 50kg/m2
Cabinet Material Metal / Aluminum LED Display
Power Input Voltage 100-240V AC, 50/60Hz
Max Power Consumption 1200 Watt/m2
Avg. Power Consumption 720 Watt/m2
  Brightness

≥1800cd/m2

Brightness Uniformity Luminance Discrepancy < 5%
Best Viewing Angle Horizontal:140°,Vertical:70°
Viewing Distance 5 - 15 meters
Ambint Conditions Temperature Range Working:-20deg. to +60deg
Operating Humidity 10%90%RH
Ingression Protection Grade IP30
Processing Scanning Mode 1/16 scanning
Refresh Frequency 600-1200HZ, Adjustable(depends on control system)
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN, RS 232/RS485
Controller Linsn or Nova


 >> Advantage
 1. Wide Applicability: Stage rental events, entertainment, indoor and outdoor environment.
 2. Light Weight:Using aluminum profile material, the cabinet weight is only7.5kg.
 3. High Contrast Ratio: novel design of mask,contrast ratio can reach 2200.
 4. Quiet:Direct current fan only has little noise.
 5.Thin:the thickest part of cabinet is only 64mm.
 6. High Precision:each cabinet of precision deviation <0.5mm
High Resolution P3 Creative LED Screen Full Color Soft LED Curtain Video Wall 0
