Home > products > Front Service LED Display > P6.67 Large Front Service LED Display Full Color IP65 Waterproof 22477 Dos/Sqm

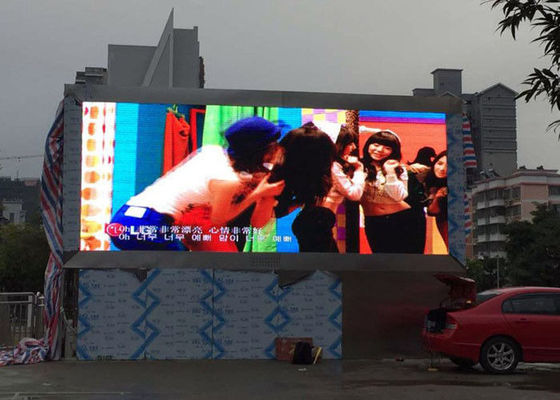

P6.67 Large Front Service LED Display Full Color IP65 Waterproof 22477 Dos/Sqm

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-OFSP6670

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

front service led screen

,

front service led sign

Module Size:
320*320mm
Pixels:
6.67mm
Protection Grade:
IP65
Brightness:
>6000nits
Viewing Angle:
140°/140°
Cabinet Size:
960*960mm
Module Size:
320*320mm
Pixels:
6.67mm
Protection Grade:
IP65
Brightness:
>6000nits
Viewing Angle:
140°/140°
Cabinet Size:
960*960mm
Product Description


P6.67 Large Front Service LED Display Full Color IP65 Waterproof 22477 Dos/Sqm


 >> Description



 1. Outdoor pixel pitch 6.67mm; Also 8mm and 10mm are optional. LED modules size is 320x320mm.

 2. Ingress Protection IP65 level to protect the LED screen from harsh outdoor environment

 3. Brightness can reach as high as 6000nits to be visible clearly even in sunlight.
 4. Reliable quality of all components to ensure the long life span to 100000H
 5. Front service design to save structure cost and labor cost
 6. High refresh rate 1920Hz and stable performance;



Pixel Pitch 6.67mm
Pixel Density 22,477dos/sqm
LED Configuration SMD2727
Module Size 320*320mm
Module Resolution 48*48 dots
Cabinet Size 960*960mm
Cabinet Resolution 144*144dot
Brightness >6000nits
Refresh Rate >1920hz
Viewing Distance 10-300m
Power Input AC110V - 220V ±15%, 50HZ
Max Power Consumption 680W/sqm
Ave. Power Consumption 195W/sqm
Working Temperature -20℃ - +60℃
Lifespan >100,000 Hours
Operating Humidity 10% - 95%
Input Source All Format (AVI, MPEG,VOB, RM, etc)



 >> Description

 1. Maintenance can be conducted from either front or rear side.
This is front maintenance steel cabinet with frame and hydraulic lever, easy to maintain from the front;
 2. It can be installed without taking the space for maintenance channel into consideration, thus improving your work efficiency.
 3. Long-term Brightness:6000nits brightness(for outdoor full colour) throughout product lifetime of the LED display
 4. It Controlled with PC by synchronization, with high refresh rate;
 5. 1% spare parts provided for customers to replace defective ones in the future.



 >> Package



Fixed Installation type LED screens are packed by good quality Flight case for better protection.



 >> After Sales Service


 1. 24-hour hotline service, including counselling and technical guidance.
 2. On-line service.
 3. Failure maintenance of LED panels.
 4. Free professional technical training
 5. Paid software upgrade.
 6. Engineering technical service.



 >> Technical support



 1. nstallation and Maintain Manual

 2. LED display system connection diagram

 3. Data wire connection diagram

 4. Power supply wire connection diagram

 5. multi-language software Guidance


 >> Warranty

 We provide 2 years warranty. During the warranty time, we provide free parts for replacement,

but we will charge you a production cost for the parts when the warranty expires.
