Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFSP1002
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
320*320mm |
Pixels: |
10mm |
Protection Grade: |
IP65 |
Brightness: |
>10000nits |
Operating Humidity: |
10% - 95% |
Refresh Rate: |
>3840hz |
Module Size: |
320*320mm |
Pixels: |
10mm |
Protection Grade: |
IP65 |
Brightness: |
>10000nits |
Operating Humidity: |
10% - 95% |
Refresh Rate: |
>3840hz |

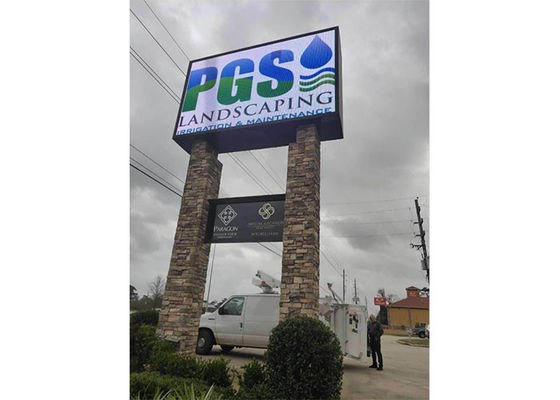

Outdoor Front Service LED Display Billboard 10mm Pixel Pitch 10000nits Brightness
>> Key Benefits
1. Broad viewing angle;
2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Front service module design, which reduce the cost of the display maintenance.
| Pixel Pitch | 10mm |
| Pixel Density | 10000dos/sqm |
| LED Configuration | DIP346 |
| Module Size | 320*320mm |
| Module Resolution | 32*32 dots |
| Cabinet Size | 960*960mm |
| Cabinet Resolution | 96*96dot |
| Brightness | >10000nits |
| Refresh Rate | >3840hz |
| Viewing Distance | 10-100m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 650W/sqm |
| Ave. Power Consumptio | 260W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Lifespan | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1, Maintenance can be conducted from either front or rear side.
This is front maintenance steel cabinet with frame and hydraulic lever, easy to maintain from front;
2, It can be installed without taking the space for maintenance channel into consideration, thus improving
your work efficiency.
3, Long-term Brightness:6000-nit brightness(for outdoor full color) throughout product lifetime of the LED display
4, It Controlled with PC by synchronization, with high refresh rate;
5, 1% spare parts provided for customers to replace defective ones in the future.
>> Pre-Sales Service
1. We have a professional sales team and an experienced technical team to follow your projects.
2. We could provide some videos and photos of similar projects for your reference.
3. We will make the high cost-efficiency proposals for your choosing.
>> Technical Support
1. 24 hours online technical support.
2. We will adjust the screen for you before delivery and teach you the operation method.
3. We could guide you to find out the improper operation or replace the broken accessories when problem occurs
