Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OFSP1003
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
320*320mm |
Pixels: |
10mm |
Protection Grade: |
IP65 |
Brightness: |
>7500nits |
Refresh Rate: |
>1920hz |
Viewing Distance: |
10-300m |
Module Size: |
320*320mm |
Pixels: |
10mm |
Protection Grade: |
IP65 |
Brightness: |
>7500nits |
Refresh Rate: |
>1920hz |
Viewing Distance: |
10-300m |
High Brightness Front Service LED Sign Full Color , Large P10 Outdoor LED Screen
>> Description
1. Outdoor IP65 waterproof level, High Brightess 7500nits
2. Reliable quality components, and long life span
3. Front service design to save structure cost and labor cost
4. High refresh rate and stable performance
| Pixel Pitch | 10mm |
| Pixel Density | 10,000dos/sqm |
| LED Configuration | DIP346 |
| Module Size | 320*320mm |
| Module Resolution | 32*32 dots |
| Cabinet Size | 960*960mm |
| Cabinet Resolution | 96*96dot |
| Brightness | >7500nits |
| Refresh Rate | >1920hz |
| Viewing Distance | 10-300m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 560W/sqm |
| Ave. Power Consumptio | 168W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Lifespan | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description

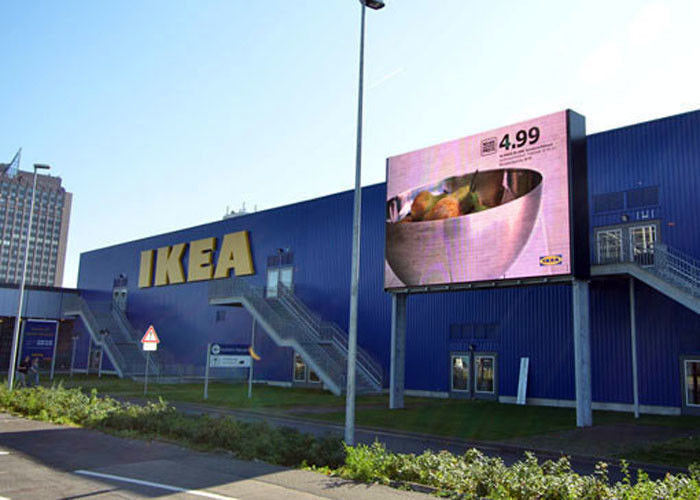

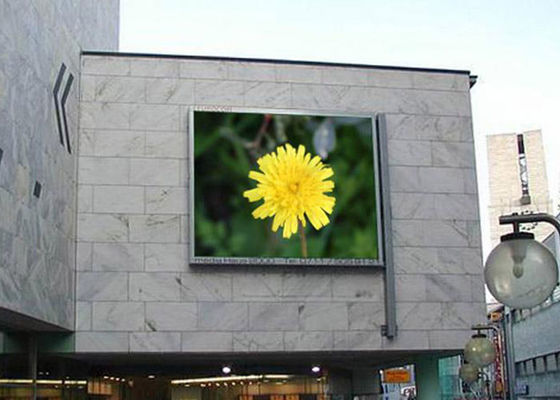

1. Usage : Outdoor, Building, Station, shopping mall, Highway, etc
2. Installation : Wall-mounted, front service with easy structure
3. Control : Contolled by your computer ,own equipment.; or adopt wireless controller
4. Connection : Connected to your computer or own equipment.
5. Maintenance: Enough Free spare parts for replacement, front service easier to change.
>> Feature
For Outdoor fixed installation application;
SMD LED Display;
Weatherproof to IP65/65 standards;
High resolution images and long lifetime;
Easily configured for various size and aspect ratios;
Wide viewing angle;
Brightness from 6000 nits onwards.
Service access: Module front service
>> After Sales Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service:Each of our LED display products comes with at least two years warranty and a lifetime maintanance
7. Engineering technical service.
