Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-S3P1669
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
200*300mm |
Pixels: |
1.667mm |
Viewing Angle: |
140°/140° |
Cabinet Wegiht: |
4.55kg/pc |
Module Resolution: |
120*180dot |
Working Temperature: |
-20℃ - +60℃ |
Module Size: |
200*300mm |
Pixels: |
1.667mm |
Viewing Angle: |
140°/140° |
Cabinet Wegiht: |
4.55kg/pc |
Module Resolution: |
120*180dot |
Working Temperature: |
-20℃ - +60℃ |

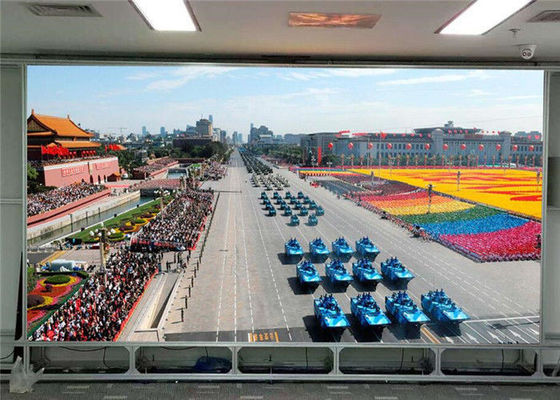

Energy Saving Small Pixel Pitch LED Display Wall Mounted With 3840 Hz Refresh
>> Features
1. H3840hz refresh and high resolution to play 4K video smoothly
2. Black nationstar led lamp to improve the contrast ratio to be 4000:1
3. Different installation way, standing, wall-mounted,
4. Front access die casting cabinet. can be rear and front access cabinet.
5. Same Cabinet can be P1.56, p1.66, p1.923
|
Item |
parameters |
|
Pixel Pitch |
1.667mm |
|
Pixel Density |
360.000dos/sqm |
|
LED Package |
Nationstar black SMD1010 |
|
Module Size |
200*300mm |
|
Module Resolution |
120*180dot |
|
Cabinet Size |
400*300mm |
|
Cabinet Resolution |
240*180dot |
|
Cabinet Wegiht |
4.55kg/pc |
|
Viewing Angle |
140°/140° |
|
Viewing Distance |
1.6-60m |
|
Power Input |
AC110V - 220V ±15%, 50HZ |
|
Max Power Consumption |
815W/sqm |
|
Ave. Power Consumption |
255W/sqm |
|
Working Temperature |
-20℃ - +60℃ |
|
Input Source |
All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc) |
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
