Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-S3P1670
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
200*300mm |
Pixels: |
1.667mm |
Viewing Angle: |
140°/140° |
Cabinet Wegiht: |
4.7kg/pc |
Cabinet Resolution: |
240*180dot |
Power Input: |
AC110V - 220V ±15%, 50HZ |
Module Size: |
200*300mm |
Pixels: |
1.667mm |
Viewing Angle: |
140°/140° |
Cabinet Wegiht: |
4.7kg/pc |
Cabinet Resolution: |
240*180dot |
Power Input: |
AC110V - 220V ±15%, 50HZ |

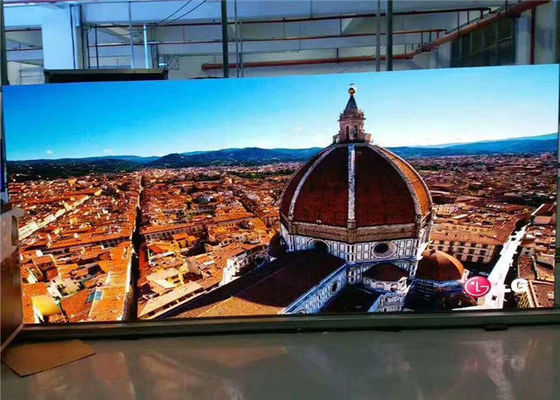

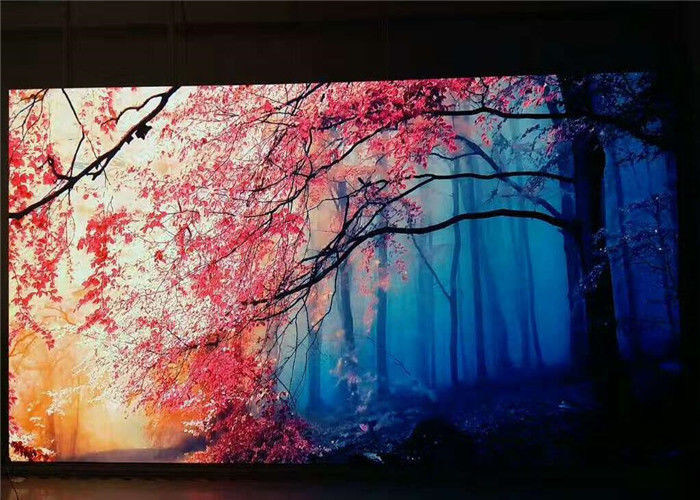

Light Weight Small Pixel LED Display P1.667 Commercial Stage Video Wall
>> Features
1. High Refresh 3840hz With high definition to play 4K video smoothly
2. Nationstar led lamp to ensure the bigger viewing angle.
3. Die casting cabinet to ensure the flatness and uniformity
4. Front access die casting cabinet. can be rear and front access cabinet.
5. Same Cabinet can be P1.56, p1.66, p1.923
| Item | parameters |
| Pixel Pitch | 1.667mm |
| Pixel Density | 360.000dos/sqm |
| LED Package | Black SMD1010 |
| Module Size | 200*300mm |
| Module Resolution | 120*180dot |
| Cabinet Size | 400*300mm |
| Cabinet Resolution | 240*180dot |
| Cabinet Wegiht | 4.7kg/pc |
| Viewing Angle | 140°/140° |
| Viewing Distance | 1.6-60m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 810W/sqm |
| Ave. Power Consumption | 245W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc) |
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
