Small Pixel Pitch Indoor LED Display Panel With Die Casting Aluminum Cabinet

Product Details

Place of Origin: Shenzhen ,China

Brand Name: DDW

Certification: CE/ROHS/FCC/UL/ISO/3C

Model Number: DDW-S3P1671

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Plywood or Flight Case

Delivery Time: 7-20 days

Payment Terms: Bank T/T transfer, Western Union

Supply Ability: 6000sqm/month

Get Best Price
Product Details
Highlight:

small pixel pitch led screen

,

high brightness led screen

Module Size:
200*300mm
Pixels:
1.667mm
Viewing Angle:
140°/140°
Cabinet Wegiht:
4.6kg/pc
Viewing Distance:
1.6-60m
Working Temperature:
-20℃ - +60℃
Module Size:
200*300mm
Pixels:
1.667mm
Viewing Angle:
140°/140°
Cabinet Wegiht:
4.6kg/pc
Viewing Distance:
1.6-60m
Working Temperature:
-20℃ - +60℃
Product Description


Small Pixel Pitch Indoor LED Display Panel With Die Casting Aluminum Cabinet



 >> Features


 1. High Refresh more than 3840hz, to ensure the video smoothly even play 4K video
 2. Nationstar led lamp to ensure the bigger viewing angle.
 3. Die-castting magnesium alloy cabinet, seamless, bezel-free, size-free splicing with adjusting accuracy 0.01mm.
 4. Front access die casting cabinet. can be rear and front access cabinet.
 5. Same Cabinet can be P1.56, p1.66, p1.923



Item parameters
Pixel Pitch 1.667mm
Pixel Density 360.000dos/sqm
LED Package Nationstar SMD1010
Module Size 200*300mm
Module Resolution 120*180dot
Cabinet Size 400*300mm
Cabinet Resolution 240*180dot
Cabinet Wegiht 4.6kg/pc
Viewing Angle 140°/140°
Viewing Distance 1.6-60m
Power Input AC110V - 220V ±15%, 50HZ
Max Power Consumption 810W/sqm
Ave. Power Consumption 240W/sqm
Working Temperature -20℃ - +60℃
Operating Humidity 10% - 95%
Input Source All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc)



 >> After Sales Service

 1. More than 1 years warranty

 2. Free factory training

 3. 24/7H online support

 4. Lifetime free repair and technical support

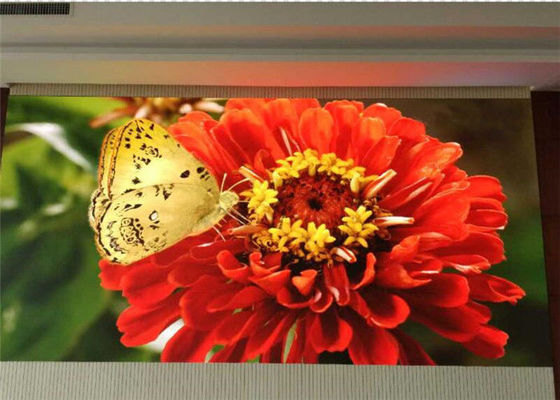

Small Pixel Pitch Indoor LED Display Panel With Die Casting Aluminum Cabinet 0
