Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-S3P1923
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
200*300mm |
Pixels: |
1.923mm |
Cabinet Size: |
400*300mm |
Cabinet Wegiht: |
4.5kg/pc |
Max Power Consumption: |
800W/sqm |
Operating Humidity: |
10% - 95% |
Module Size: |
200*300mm |
Pixels: |
1.923mm |
Cabinet Size: |
400*300mm |
Cabinet Wegiht: |
4.5kg/pc |
Max Power Consumption: |
800W/sqm |
Operating Humidity: |
10% - 95% |

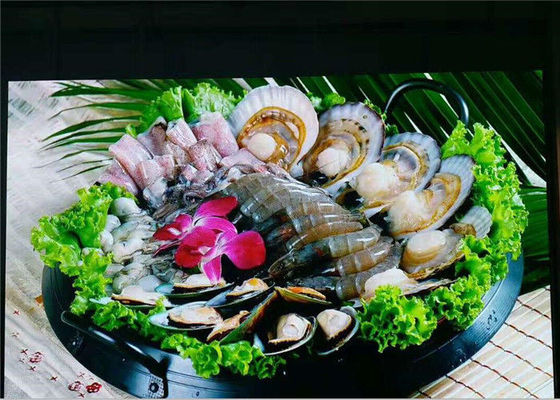

P1.923 Small Pixel Pitch LED Display Easy Instal For Exhibition Advertising
>> Features
1. Small pixel pitch series, ultra high definition LED display, the high resolution brings delicate display effect.
2. Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability.
3. Die-castting magnesium alloy cabinet, seamless, bezel-free, size-free splicing with adjusting accuracy 0.01mm.
4. Metal cooling structure, magnesium alloy material ensures perfect heat dissipation, no noise and no fan.
5. Perfect for indoor rental and fixed application, ultra light and thin, dual handles and quick lock desing, easy on-site installation.
| Item | parameters |
| Pixel Pitch | 1.923mm |
| Pixel Density | 270.400dos/sqm |
| LED Package | Nationstar SMD1010 |
| Module Size | 200*300mm |
| Module Resolution | 104*156dot |
| Cabinet Size | 400*300mm |
| Cabinet Resolution | 208*156dot |
| Cabinet Wegiht | 4.5kg/pc |
| Viewing Angle | 140°/140° |
| Viewing Distance | 1.9-60m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 800W/sqm |
| Ave. Power Consumption | 250W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc) |
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
