Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-S3P1924
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
200*150mm |
Pixels: |
1.923mm |
Cabinet Size: |
800*450mm |
Cabinet Wegiht: |
11.5kg/pc |
Max Power Consumption: |
460W/sqm |
Operating Humidity: |
10% - 95% |
Module Size: |
200*150mm |
Pixels: |
1.923mm |
Cabinet Size: |
800*450mm |
Cabinet Wegiht: |
11.5kg/pc |
Max Power Consumption: |
460W/sqm |
Operating Humidity: |
10% - 95% |

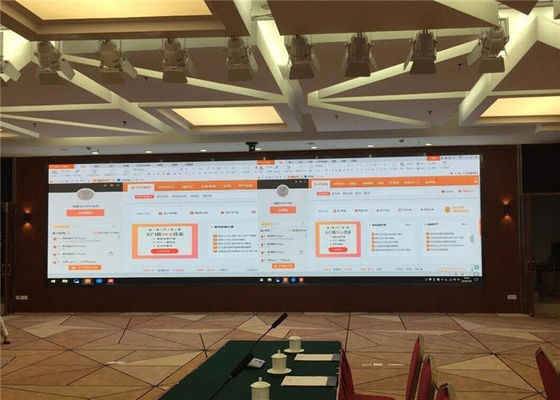

Ultra HD P1.923 indoor LED Display Full Color High Brightness LED Screen
>> Features
1. Efficient 4layers PCB design with high quality power supply to save power consumption
2. Nationstar SMD1010 black LED chip to improve contrast ratio
3. High refresh (2880hz), to ensure the stage effect is very nice under the HD camera
4. Front service ,Fast lock and light weight to save labor and assemble the big screen quickly
| Item | parameters |
| Pixel Pitch | 1.923mm |
| Pixel Density | 270.400dos/sqm |
| LED Package | Nationstar SMD1010 |
| Module Size | 200*150mm |
| Module Resolution | 104*78dot |
| Cabinet Size | 800*450mm |
| Cabinet Resolution | 416*234dot |
| Cabinet Wegiht | 11.5kg/pc |
| Viewing Angle | 140°/140° |
| Viewing Distance | 2-60m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption |
460W/sqm |
| Ave. Power Consumption | 150W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc) |
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
