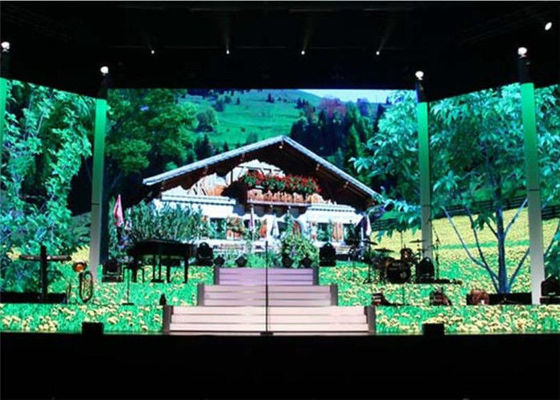

SMD2121 P3.91 Stage LED Screen Indoor Led Advertising Boards Energy Saving

SMD2121 P3.91 Stage LED Screen Indoor Led Advertising Boards Energy Saving

  • High Light

    stage background led screen

    ,

    led stage curtain screen

  • Usage
    Indoor
  • Driving Mode
    1/16scan
  • Pixels
    3.91mm
  • Cabinet Wegiht
    8.6kg/pc
  • Module size
    250*250mm
  • Brightness
    ≥1000nits
  • Place of Origin
    Shenzhen ,China
  • Brand Name
    DDW
  • Certification
    CE/ROHS/FCC/UL/ISO/3C
  • Model Number
    DDW-ISRP3912
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Plywood or Flight Case
  • Delivery Time
    7-20 days
  • Payment Terms
    Bank T/T transfer, Western Union
  • Supply Ability
    6000sqm/month

SMD2121 P3.91 Stage LED Screen Indoor Led Advertising Boards Energy Saving



SMD2121 P3.91 Stage LED Screen Indoor Led Advertising Boards Energy Saving



 >> Features

 1. High contrast ratio. black mask with black lamps can improve the contrast ratio by 50%.
 2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
 3. The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
 4. Effcient PCB design with high quality power supply to save much power consumption
 5. High refresh rate, high gray scale,ghost-canceling, low EMI, anti-creeping, multi-route redundancy backup-supporting, and dot-by-dot-calibration.

 >> Specification



Item parameters
Pixel Pitch PH 3.91mm
Pixel Density 65,415dos/sqm
LED Package Black SMD2121
Module Size 250*250mm
Module Resolution 64*64dot
Cabinet Size 500*500mm
cabinet Resolution 128*128dot
Cabinet Materials Die Casting Aluminum
Cabinet Wegiht 8.6kg/pc
Brightness ≥1000nits
Driving Mode 1/16scan
Refresh Rate ≥1920hz
Grey Level 256levels
Viewing Angle 140°/140°
Viewing Distance 3-100m
Power Input AC110V - 220V ±15%, 50HZ
Working Temperature -20℃ - +65℃
Life Span >100,000 Hours


 >> Description

 1. Usage : Different indoor stage event. such as party, hotel event, welding etc.
 2. Installation : Hanging, standing on floor.
 3. Control : Contolled by your computer,own equipment.;.
 4. Connection : Connected to your computer .Camera,DVD or own equipment.
 5. Maintenance: Enough Free spare parts for replacement.

 >> After Sales Service

 1. 1 years warranty
 2. Free factory training
 3. 24/7 hours online service
 4. Lifetime technical support
