Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFSP4000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
256*128mm |
Pixels: |
4mm |
Protection Grade: |
IP65 |
Brightness: |
>1200nits |
Viewing Distance: |
4-120m |
Working Temperature: |
-20℃ - +60℃ |
Module Size: |
256*128mm |
Pixels: |
4mm |
Protection Grade: |
IP65 |
Brightness: |
>1200nits |
Viewing Distance: |
4-120m |
Working Temperature: |
-20℃ - +60℃ |

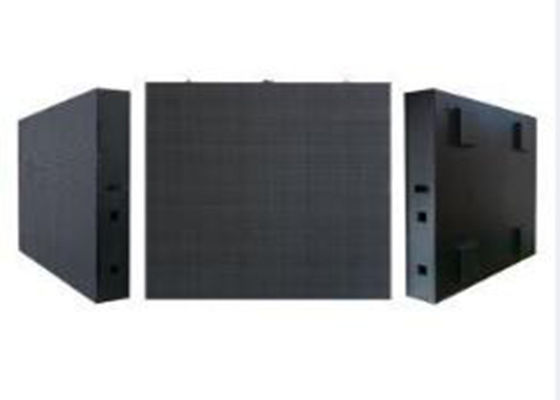

Damp Proof Front Service Led Screen P4mm Full Color Outdoor LED Display
>> advantages
1. High definition as 62,500 pixels/sq.m, very high image quality;
2. Wide view angle of 140° for both horizontal and vertical view
3. Indoor front service design makes less installation structure, and less labor cost
4. Refresh rate more than 1920Htz, image colors are very vivid
Pixel Pitch | 4mm |
Pixel Density | 62,500dos/sqm |
LED Configuration | SMD2121 |
Module Size | 256*128mm |
Module Resolution | 64*32 dots |
Cabinet Size | 768*768mm |
Cabinet Resolution | 192*192dot |
Brightness | >1200nits |
Refresh Rate | >1920hz |
Viewing Distance | 4-120m |
Power Input | AC110V - 220V ±15%, 50HZ |
Max Power Consumption | 570W/sqm |
Ave. Power Consumptio | 171W/sqm |
Working Temperature | -20℃ - +60℃ |
Lifespan | >100,000 Hours |
Operating Humidity | 10% - 95% |
Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1. Usage : Indoor, Airport, Station, Shopping Mall, Conference Room, etc
2. Installation : Wall-mounted, front service with easy structure
3. Control : Contolled by your computer ,own equipment.; or adopt wireless controller
4. Connection : Connected to your computer or own equipment.
5. Maintenance: Enough Free spare parts for replacement, front service easier to change.
>> After Sales Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service:Each of our LED display products comes with at least one years warranty and a lifetime maintanance
7. Engineering technical service.
>> FAQS
Q1: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products
Q2: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period,
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
