High Brightness Front Service LED Display Screen P16 320mm X 320mm Module Size

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-OFSP1600
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Module Size 320*320mm Pixels 16mm
Protection Grade IP65 Brightness >7000nits
Viewing Distance 16-300m Working Temperature -20℃ - +60℃
High Light

front service led screen

,

front service led sign

Leave a Message
Product Description

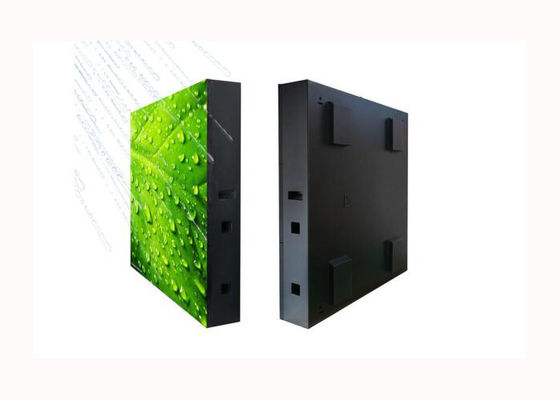

High Brightness Front Service LED Display Screen P16 320mm X 320mm Module Size



 >> Features


 1. Outdoor IP65 waterproof level, High Brightess 7000nits
 2. Reliable quality components, and long life span

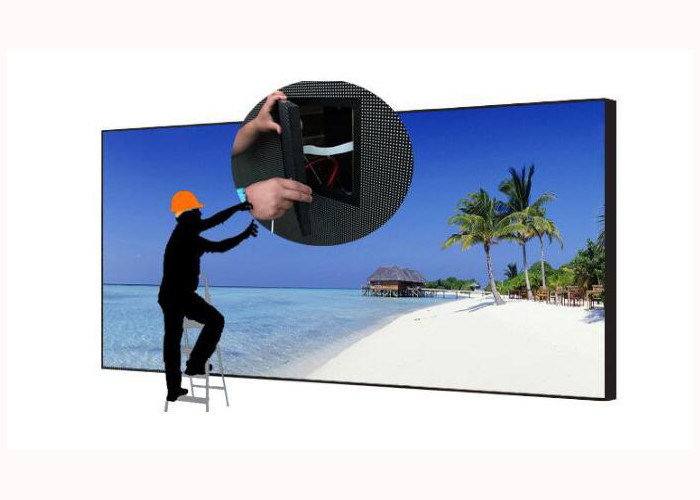

 3. Front service design to save structure cost and labor cost
 4. High refresh rate and stable performance



Pixel Pitch 16mm
Pixel Density 3,906dos/sqm
LED Configuration DIP346
Module Size 320*320mm
Module Resolution 20*20 dots
Cabinet Size 960*960mm
Cabinet Resolution 60*60dot
Brightness >7000nits
Refresh Rate >1920hz
Viewing Distance 16-300m
Power Input AC110V - 220V ±15%, 50HZ
Max Power Consumption 500W/sqm
Ave. Power Consumptio 150W/sqm
Working Temperature -20℃ - +60℃
Lifespan >100,000 Hours
Operating Humidity 10% - 95%
Input Source All Format (AVI, MPEG,VOB, RM, etc)


 >> Description

 1. Usage : Outdoor, Building, Station, shopping mall, Highway, etc
 2. Installation : Wall-mounted, front service with easy structure
 3. Control : Contolled by your computer ,own equipment.; or adopt wireless controller
 4. Connection : Connected to your computer or own equipment.
 5. Maintenance: Enough Free spare parts for replacement, front service easier to change.



 >> FAQS

 Q1:How could I buy the products I need if there is no price in the website?
 A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
 Q2:How long could I get reply of my inquiry?
 A:You will get a reply within 24 hours.
 Q3: What kind of warranty do you offer?
 A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty.
 Q4:How is the after sales service?
 A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
