Shenzhen DDW Technology Co., Ltd. info@ddwled.com 86-180-07555858
Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-IFSP6000
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Module Size: |
192*192mm |
Pixels: |
6mm |
Protection Grade: |
IP65 |
Brightness: |
>1000nits |
Viewing Distance: |
6-300m |
Working Temperature: |
-20℃ - +60℃ |
Module Size: |
192*192mm |
Pixels: |
6mm |
Protection Grade: |
IP65 |
Brightness: |
>1000nits |
Viewing Distance: |
6-300m |
Working Temperature: |
-20℃ - +60℃ |

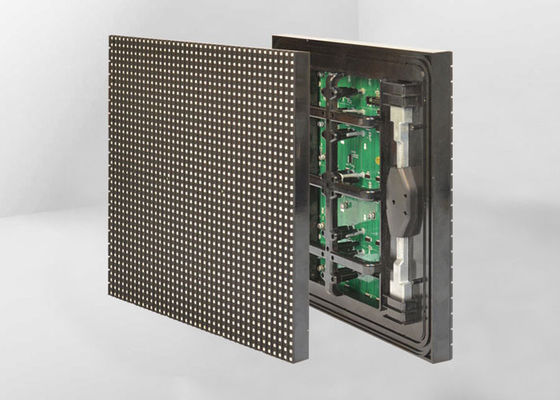

Full Color Front Service LED Display P6 Pixel Pitch With 140° Wide View Angle
>> Features
1. SMD 1R1G1B LED full color display, very good colors
2. 140° wide view angle, and long life span
3. With good quality brand meanwell power supply, and other reliable components
4. Indoor front service design makes less installation structure, and less labor cost
5. Refresh rate more than 1920Htz, image colors are very vivid
| Pixel Pitch | 6mm |
| Pixel Density | 27,777dos/sqm |
| LED Configuration | SMD3528 |
| Module Size | 192*192mm |
| Module Resolution | 32*32 dots |
| Cabinet Size | 960*960mm |
| Cabinet Resolution | 160*160dot |
| Brightness | >1000nits |
| Refresh Rate | >1920hz |
| Viewing Distance | 6-300m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 580W/sqm |
| Ave. Power Consumptio | 175W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Lifespan | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1. Usage:Indoor, Airport, Station, Shopping Mall, Conference Room, etc
2. Installation:Wall-mounted, front service with easy structure
3. Control:Contolled by your computer ,own equipment.; or adopt wireless controller
4. Connection : Connected to your computer or own equipment.
5. Maintenance: Enough Free spare parts for replacement, front service easier to change.
>> After Sales Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service:Each of our LED display products comes with at least two years warranty and a lifetime maintanance
7. Engineering technical service.
