Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ISRP4813
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Usage: |
Indoor |
Driving Mode: |
1/16scan |
Pixels: |
4.81 Mm |
Cabinet Wegiht: |
15kg/pc |
Module size: |
250*250mm |
Brightness: |
≥1200nits |
Usage: |
Indoor |
Driving Mode: |
1/16scan |
Pixels: |
4.81 Mm |
Cabinet Wegiht: |
15kg/pc |
Module size: |
250*250mm |
Brightness: |
≥1200nits |

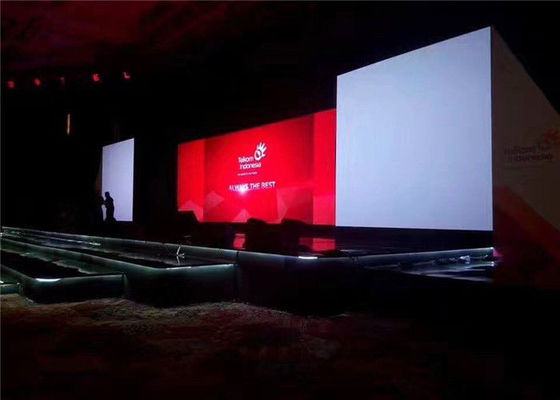

Indoor Stage Background LED Display Screen P4.81 Nationstar SMD2121 1200nits
>> Advantage
1. Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
3. Module surface flatness ± 0.1mm, the entire screen has good flatness;
4. High resolution and definition of screen image, clear and non-flash screen image.
5. Supports video and radio frequency input, special structure can be freely assembled.
| Item | Specification |
| Pixel Pitch | PH4.81 mm |
| Pixel Density | 43,266dos/sqm |
| LED Package | SMD2121 Black |
| Module Size | 250*250mm |
| Module Resolution | 52*52dot |
| Cabinet Size | 500*1000mm |
| Cabinet Resolution | 104*208dot |
| Cabinet Materials | Die Casting Aluminum |
| Cabinet Wegiht | 15kg/pc |
| Brightness | ≥1200nits |
| Driving Mode | 1/16scan |
| Refresh Rate | ≥1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 5-100m |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Certificate | CE,ROHS,FCC,ETL |
| Control Way | Synchronous |
>> Description
1. Super brightness, long and wide viewing distance
2. Automatic pipelining production
3. Use static-constant current for smooth and nature color transitions
4. Outstanding consistency in color and brightness, no Mosaic effect
5. Modular design for easy installation and maintenance
6. Operating software compatible with widely available software
7. Can be designed hanging system to satisfy special conditions
8. Support all languages
>> Advantages
1) The brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Any led in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
5) Good heat emission capability, Environmental-friendly.
