High Resolution Stage Rental LED Display Screen 5.95mm Pixel Pitch 28246 Dos/Sqm
Product Details:
| Place of Origin: | Shenzhen ,China |
| Brand Name: | DDW |
| Certification: | CE/ROHS/FCC/UL/ISO/3C |
| Model Number: | DDW-ISRP5950 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood or Flight Case |
| Delivery Time: | 7-20 days |
| Payment Terms: | Bank T/T transfer, Western Union |
| Supply Ability: | 6000sqm/month |
|
Detail Information |
|||
| Cabinet Size: | 500*500mm | Viewing Distance: | 6-100m |
|---|---|---|---|
| Pixels: | 5.95mm | Cabinet Wegiht: | 8.6kg/pc |
| Module Size: | 250*250mm | Brightness: | ≥1200nits |
| Highlight: | stage background led display,led stage curtain screen |
||
Product Description
High Resolution Stage Rental LED Display Screen 5.95mm Pixel Pitch 28246 Dos/Sqm
>> Features
1. Ultra thin body,die-casting aluminum structure,high-accuracy connection,error<0.1mm.
2. Natural aluminum heat conduction design(no-cooling fan),quiet world.
3. HQ-image.Good consistency / No particle and mosaic phenomenon.
4. Muti-layer circuit PCB,uniform current distribution,low power consumption,fast heat dissipation,prolong the life of the screen.
5. Tool-free locking system.
>> Specification
| Item | parameter |
| Pixel Pitch | 5.95mm |
| Pixel Density | 28246dos/sqm |
| LED Package | SMD2121 |
| Module Size | 250*250mm |
| Module Resolution | 42*42dot |
| Cabinet Size | 500*500mm |
| Cabinet Resolution | 84*84dot |
| Cabinet Materials | Die Casting Aluminum |
| Cabinet Wegiht | 8.6kg/pc |
| Brightness | ≥1200nits |
| Driving Mode | 1/10 scan |
| Refresh Rate | ≥1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 6-100m |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Certificate | CE,ROHS,FCC,ETL |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description

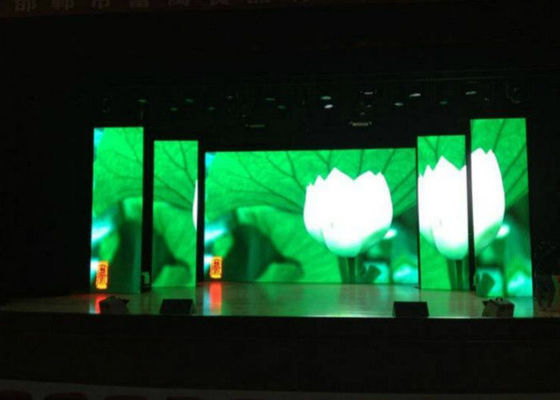

Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentantion,TV station,stage show, concert and so on.
>> Our Service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 12 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
