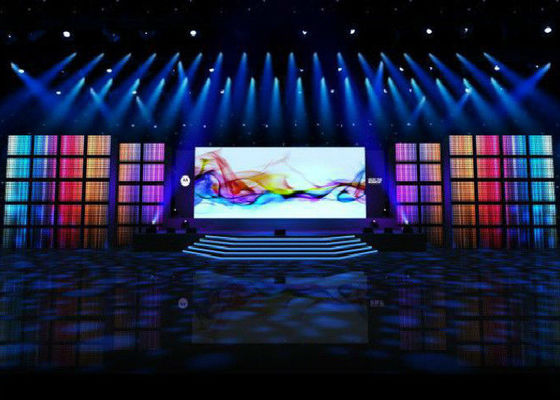

Portable Indoor LED Video Wall P5 Popular LED Backdrop Screen For Stage

Place of Origin Shenzhen ,China
Brand Name DDW
Certification CE/ROHS/FCC/UL/ISO/3C
Model Number DDW-ISRP5001
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Plywood or Flight Case
Delivery Time 7-20 days
Payment Terms Bank T/T transfer, Western Union
Supply Ability 6000sqm/month
Product Details
Cabinet Size 500*500mm Viewing Distance 2.5-100m
Pixels 5mm Cabinet Wegiht 8kg/pc
Module size 320*160mm Brightness ≥1000nits
High Light

stage background led screen


led stage curtain screen

Leave a Message
Product Description


Portable Indoor LED Video Wall P5 Popular LED Backdrop Screen For Stage


 >> Features


 1. Special Own PCB design, Vivid and brilliant color, sharp and smooth images.


 2. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.


 3. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by changing led modules.


 4. Support different shapes installation: Flat and curved ,create infinite stage styles.


 5. Super performance/price ratio solution for led stage display screen market.


 6. 24/7 professional after sales service, and on-site service is available.


 >> Specification


Item parameters
Pixel Pitch 5mm
Pixel Density 40,000dos/sqm
LED Package SMD2121
Module Size 320*160mm
Module Resolution 64*32dot
Cabinet Size 640*640mm
Cabinet Resolution 128*128dot
Cabinet Materials Die Casting Aluminum
Cabinet Wegiht 8kg/pc
Brightness ≥1000nits
Driving Mode 1/16scan
Refresh Rate ≥1920hz
Grey Level 256levels
Viewing Angle 140°/140°
Viewing Distance 2.5-100m
Working Temperature -20℃ - +60℃
Life Span >100,000 Hours
Operating Humidity 10% - 95%
Certificate CE,ROHS,FCC,ETL
Control Way Synchronous


 >> Description


 1. Super brightness, long and wide viewing distance

 2. Automatic pipelining production

 3. Use static-constant current for smooth and nature color transitions

 4. Outstanding consistency in color and brightness, no Mosaic effect

 5. Modular design for easy installation and maintenance

 6. Operating software compatible with widely available software

 7. Can be designed hanging system to satisfy special conditions

 8. Support all languages


 >> Advantages

 1) The brightness and be adjustable, meets the need of the changing requirement of customer in environment.

 2) Having good lightening accordance and no mosaic.

 3) Using virtual pixels, better viewing effect for both text & graphic and video.

 4) Any led in each pixel can be respectively repaired, which reduce the cost of the display maitenance.

 5) Good heat emission capability, Environmental-friendly.
