Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ISRP6250
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Cabinet Size: |
500*500mm |
Viewing Distance: |
6-100m |
Pixels: |
6.25mm |
Cabinet Wegiht: |
8.2kg/pc |
Module size: |
250*250mm |
Brightness: |
≥1400nits |
Cabinet Size: |
500*500mm |
Viewing Distance: |
6-100m |
Pixels: |
6.25mm |
Cabinet Wegiht: |
8.2kg/pc |
Module size: |
250*250mm |
Brightness: |
≥1400nits |

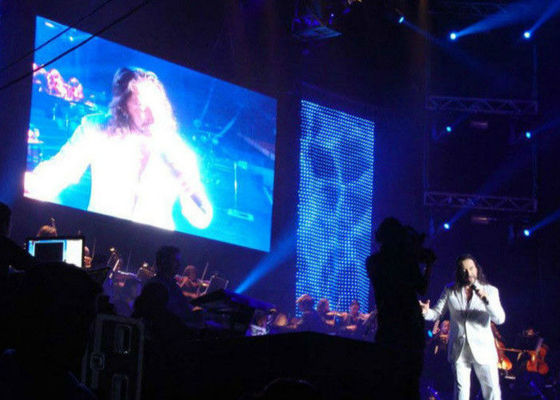

High Brightness Stage Rental LED Display P6.25mm Full Color For Indoor
>> Features
1. Ultra thin body,die-casting aluminum structure,high-accuracy connection,error<0.1mm.
2. Natural aluminum heat conduction design(no-cooling fan),quiet world.
3. HQ-image.Good consistency / No particle and mosaic phenomenon.
4. Muti-layer circuit PCB,uniform current distribution,low power consumption,fast heat dissipation,prolong the life of the screen.
5. Tool-free locking system.
>> Specification
| Item | parameters |
| Pixel Pitch | 6.25mm |
| Pixel Density | 25600dos/sqm |
| LED Package | Black SMD2121 |
| Module Size | 250*250mm |
| Module Resolution | 40*40dot |
| Cabinet Size | 500*500mm |
| Cabinet Resolution | 80*80dot |
| Cabinet Materials | Die Casting Aluminum |
| Cabinet Wegiht | 8.2kg/pc |
| Brightness | ≥1400nits |
| Driving Mode | 1/13 scan |
| Refresh Rate | ≥1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 6-100m |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Certificate | CE,ROHS,FCC,ETL |
| Video Processor | LVP615S,Etc |
>> Description
1. High precision die casting aluminum material cabinet, special design on cabinet bottom ensures flatness of whole screen even the platform is not flat. Also can protect modules in screen bottom. Front and back maintenance design by module magnet assembly.
2. 250mmx250mm module, compatible P2.98, P3.91, P4.81, P5.95, P6.25, high contrast, high gray scale.
3. MBI driving IC, refresh >3840Hz, ensures true 16bit gray level.
4. High-performance PCB board substrate with strict technology process ensure perfect flatness performance, showing the most real and brilliant colors.
5. Optional LCD panel design on cabinet back can show company name, LOGO, temperature, humidity, working voltage, cumulative operation time etc.
