Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ISRP2501
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Cabinet Size: |
500*500mm |
Viewing Distance: |
2.5-100m |
Pixels: |
2.5mm |
Cabinet Wegiht: |
8kg/pc |
Module size: |
160*160mm |
Brightness: |
≥1000nits |
Cabinet Size: |
500*500mm |
Viewing Distance: |
2.5-100m |
Pixels: |
2.5mm |
Cabinet Wegiht: |
8kg/pc |
Module size: |
160*160mm |
Brightness: |
≥1000nits |

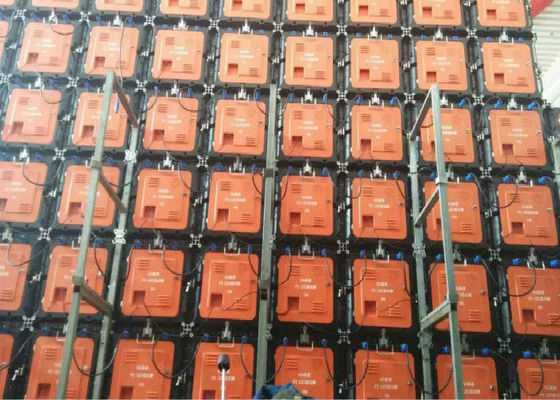

P2.5 HD Indoor Stage Rental LED Display Full Color With Die Casting Aluminum Cabinet
>> Advantages
1. Special Own PCB design, Vivid and brilliant color, sharp and smooth images.
2. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.
3. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by changing led modules.
4. Support different shapes installation: Flat and curved ,create infinite stage styles.
5. Super performance/price ratio solution for stage rental led display market.
6. 24/7 professional after sales service, and on-site service is available.
>> Specification
| Item | parameters |
| Pixel Pitch | 2.5mm |
| Pixel Density | 160,000dos/sqm |
| LED Package | SMD2121 |
| Module Size | 160*160mm |
| Module Resolution | 64*64dot |
| Cabinet Size | 480*480mm |
| Cabinet Resolution | 192*192dot |
| Cabinet Materials | Die Casting Aluminum |
| Cabinet Wegiht | 8kg/pc |
| Brightness | ≥1000nits |
| Driving Mode | 1/32scan |
| Refresh Rate | ≥1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/140° |
| Viewing Distance | 2.5-100m |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Certificate | CE,ROHS,FCC,ETL |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description
1. Usage : Different indoor stage event. such as party, hotel event, wedding etc
2. Installation : Hanging, standing on floor.
3. Control : Contolled by your computer ,own equipment.;.
4. Connection : Connected to your computer .Camera or own equipment.
5. Maintenance: Enough Free spare parts for replacement.
>> After Sales Service
1. 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
