Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-ITP7801
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Pixel Pitch: |
7.8mm |
Brightness: |
>1000nits |
Cabinet Wegiht: |
9kg/pc |
Cabinet Size: |
9kg/pc |
Working Temperature: |
-20℃ - +60℃ |
Viewing Distance: |
8-240m |
Pixel Pitch: |
7.8mm |
Brightness: |
>1000nits |
Cabinet Wegiht: |
9kg/pc |
Cabinet Size: |
9kg/pc |
Working Temperature: |
-20℃ - +60℃ |
Viewing Distance: |
8-240m |

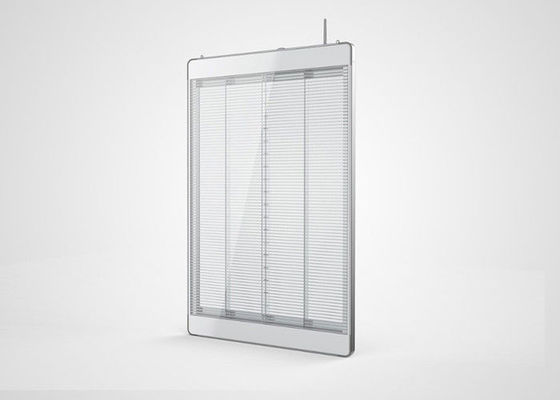

High Density LED Display Transparent LED Video Wall Easy Hanging Installation
>> Features
1. 80% High Transparency, to ensures natural light in the building.
2. Compatible with high-end decoration and better advertising effect.
3. Light weight and fast assembly.
4. Easy hanging installation without other structure, saving time and cost;
5. High refresh rate for a vivid and good image quality;
6. Wide view angle 140° in both horizontal and vertical for larger area to view.
Item | parameters |
Pixel Pitch | 7.8mm |
Pixel Density | 16,436dos/sqm |
LED Package | SMD3528 |
Cabinet Size | 1000*500mm |
cabinet Resolution | 128*64dot |
Cabinet Materials | Aluminum |
Cabinet Wegiht | 9kg/pc |
Brightness | >1000nits |
Driving Mode | Static scan |
Refresh Rate | >1920hz |
Grey Level | 256levels |
Viewing Angle | 140°/60° |
Viewing Distance | 8-240m |
Power Input | AC110V - 220V ±15%, 50HZ |
Max Power Consumption | 360W/sqm |
Ave. Power Consumptio | 115W/sqm |
Working Temperature | -20℃ - +60℃ |
Life Span | >100,000 Hours |
>> Description
1. High transparency rate: 80% transparency rate without affecting day-lighting.No need other heat dissipation system.
2. Light weight: PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
3. Fast installation: Fast lock systems ensure fast installation and saving time and labor cost.
4. High brightness and energy saving: 6000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.
5. Easy maintenance: Repairing single SMD without taking of single module of entire panel.
6. Wide application: Any building with glass wall. Such as shopping mall, Auto store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc.
>> Service
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your query in fluent English,Spanish,French,German etc.
3. Customized design is available,OEM & ODM are welcomed.
4. Warmly welcome your visit in our company if available.
5. Warranty: 12months, a little investment for longer warranty time.
