Product Details
Place of Origin: Shenzhen ,China
Brand Name: DDW
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: DDW-OTP1500
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood or Flight Case
Delivery Time: 7-20 days
Payment Terms: Bank T/T transfer, Western Union
Supply Ability: 6000sqm/month
Pixel Pitch: |
15mm |
Brightness: |
>5000nits |
Cabinet Wegiht: |
15kg/sq.m |
Cabinet Size: |
1000*500mm |
Working Temperature: |
-20℃ - +60℃ |
Viewing Distance: |
15-450m |
Pixel Pitch: |
15mm |
Brightness: |
>5000nits |
Cabinet Wegiht: |
15kg/sq.m |
Cabinet Size: |
1000*500mm |
Working Temperature: |
-20℃ - +60℃ |
Viewing Distance: |
15-450m |

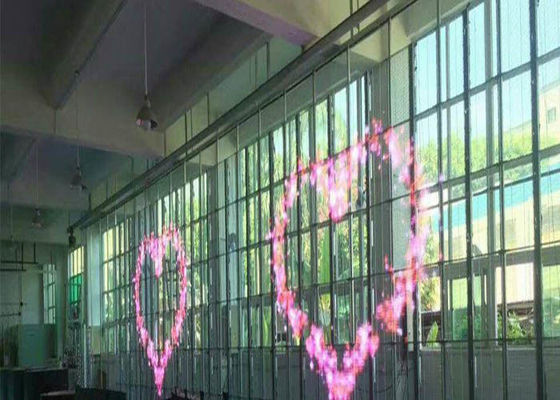

P15 Transparent LED Display Clear Full Color SMD3528 Energy Saving 65746 Dos/Sqm
>> Features
1. High transparency ability
With high transparency rate of 60%-90%,Ensure the lighting required and Viewing angle range between floors,Glass windows,Building facade lighting without lighting ability affected to original glass facade.
2. Free steel-structure required
Directly fixed on the surface of glass surface to help save a lot of installation and mainterance cost
3. Unique displaying effect
Create such feeling of the advertising image being suspended on the glass wall with the feature of transparency. It can show perfect advertising &artistic effect.
4. Less space occupied &light weight
10cm only the thickness. And the display screen body has the weight of 15kg per sqm
5. Convenient maintenance
Fast indoor mainterance , not only quick&safe,but also manpower &material fee
6. Energy-Saving&environment friendly
No need the traditional air-condition and cooling system,save more than 35%energy compare ordinary LED screen.
| Item | parameters |
| Pixel Pitch | 15mm |
| Pixel Density | 65,746dos/sqm |
| LED Package | SMD3528 |
| Cabinet Size | 1000*500mm |
| cabinet Resolution | 64*32dot |
| Cabinet Materials | Aluminum |
| Cabinet Wegiht | 15kg/sq.m |
| Brightness | >5000nits |
| Driving Mode | Static scan |
| Refresh Rate | >1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/60° |
| Viewing Distance | 15-450m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 350W/sqm |
| Ave. Power Consumptio | 110W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
>> Description
1. High transparency
Up to 80% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.
2. Light weight
PCB board is only 10mm thickness, 13kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings
3. Fast installation
Fast lock systems ensure fast installation, saving labor cost
4. High brightness and energy saving
5000nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power
5. Easy maintenance
Repairing single SMD without taking of single module or entire panel
6. Stable and reliable
Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.
7. Wide applications
Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.
>> After Sales Service
1. 12 months warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support
